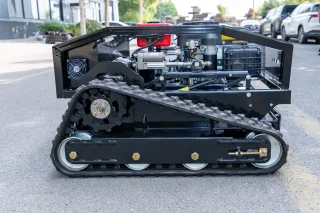

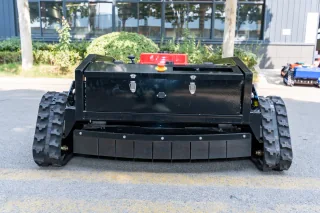

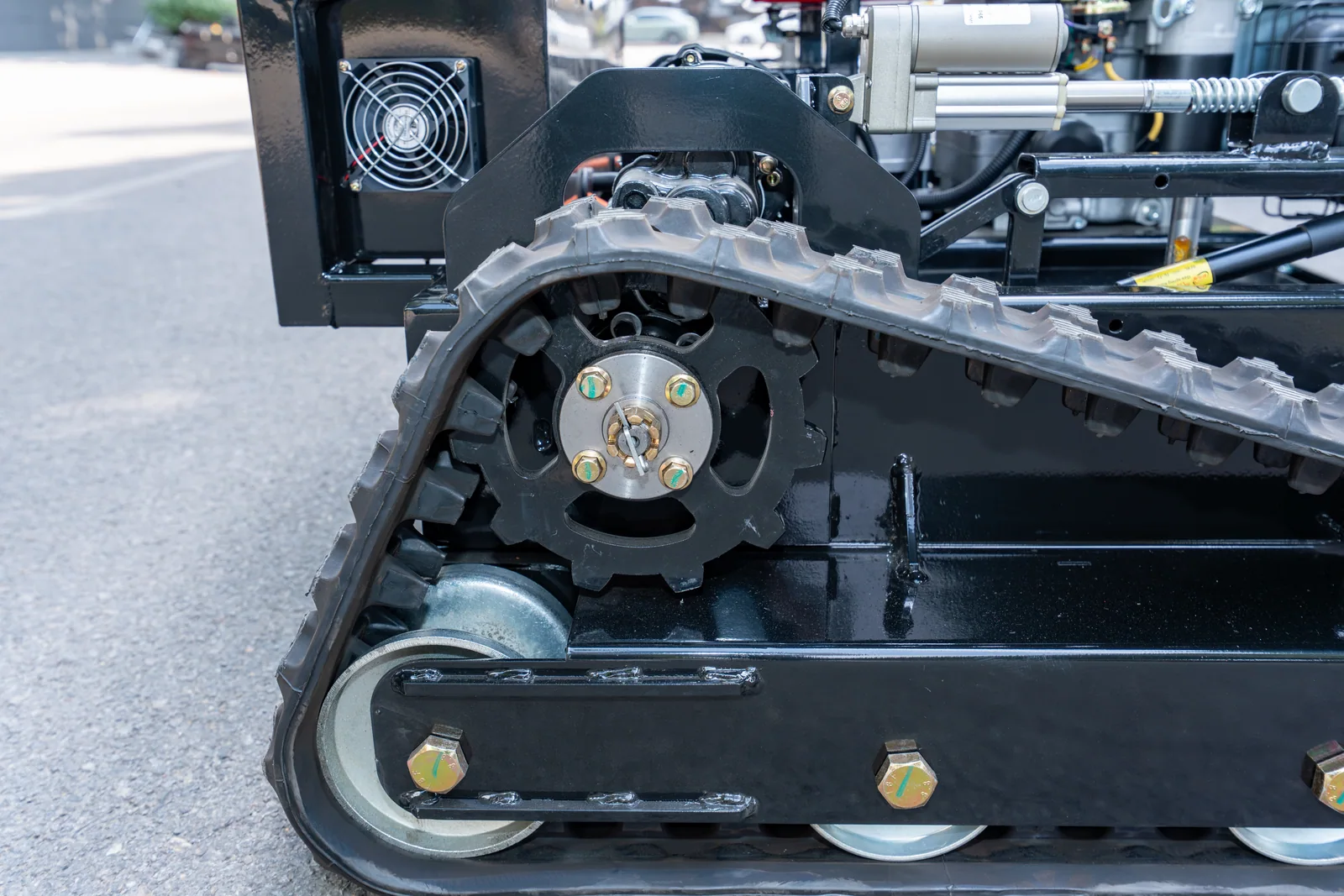

Tracked Running Gear
The AY-1000 uses a tracked chassis.

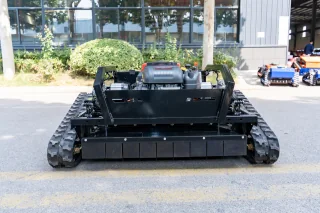

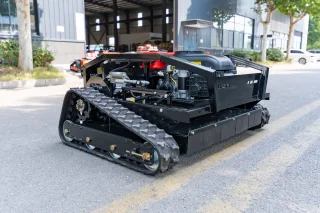

AY-1000 / 5 views REMOTE CONTROL MOWERS / AY-1000

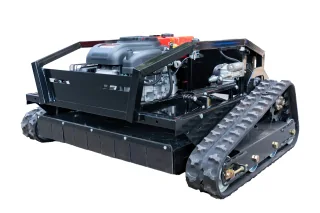

AY-1000 Remote Control Mower
A tracked remote control mower with a 1000 mm cutting width, 20–100 mm cutting-height range and 23 HP power.
- Cutting Width
- 1000 mm
- Cutting Height
- 20–100 mm
- Machine Weight
- 300 kg
- Travel Speed
- 5 km/h
Power23 HP Battery 24V / 40Ah
AVYARD / AY-1000
DESIGN & OPERATION
Features built around the work.
Key features and operating details for the AY-1000.

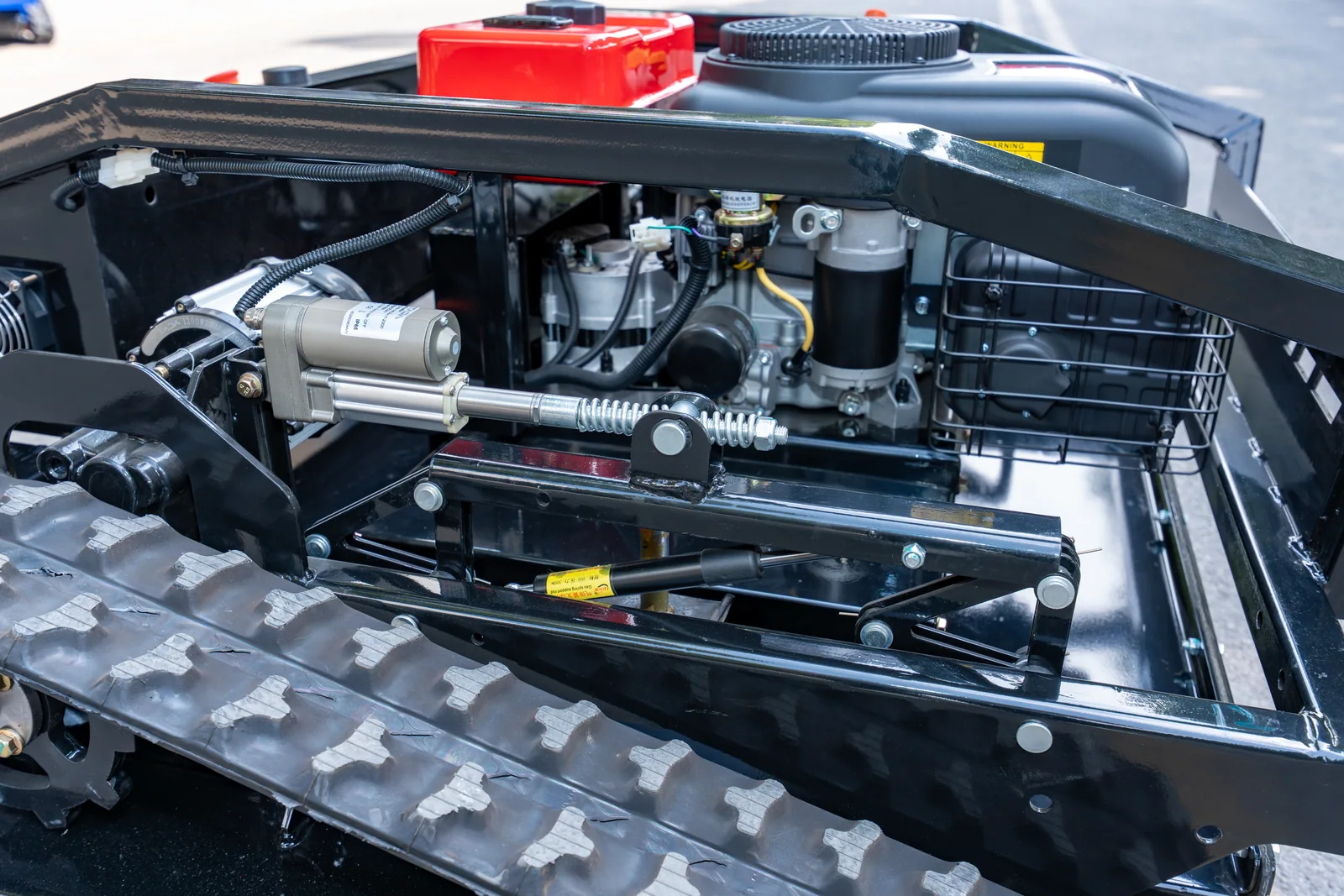

Remote Height Adjustment
The deck lift is remote-operated across a 20–100 mm cutting-height range.
Remote Engine Start / Stop
Remote operation includes engine start and stop controls.
45° Climbing Capability
A 45° climbing angle is specified for the AY-1000.
Self-Generating Electrical System
The AY-1000 is specified with a self-generating electrical system.
Wireless Integrated Control System
The model uses a wireless integrated control system.
TECHNICAL DATA
AY-1000 Specifications
Model data supplied for the AY-1000. Confirm final configuration with the AVYARD team.
Dimensions & Weight
- Model
- AY-1000
- Machine Dimensions
- 1430 × 1250 × 650 mm
- Packing Dimensions
- 1480 × 1300 × 820 mm
- Packing Weight
- 360 kg
- Machine Weight
- 300 kg
Cutting System
- Cutting Width
- 1000 mm
- Cutting Height
- 20–100 mm
- Height Adjustment
- Remote deck lift
- Mowing Efficiency
- 4,000 m²/h
Drive & Control
- Travel Speed
- 5 km/h
- Battery
- 24V / 40Ah
- Control System
- Wireless integrated control system
- Electrical System
- Self-generating electrical system
- Engine Start / Stop
- Remote engine start / stop
- Climbing Angle
- 45°
Engine & Power
- Power
- 23 HP
- Fuel Tank
- 7.1 L
- Engine Oil
- 1.2 L
PRODUCT DETAILS

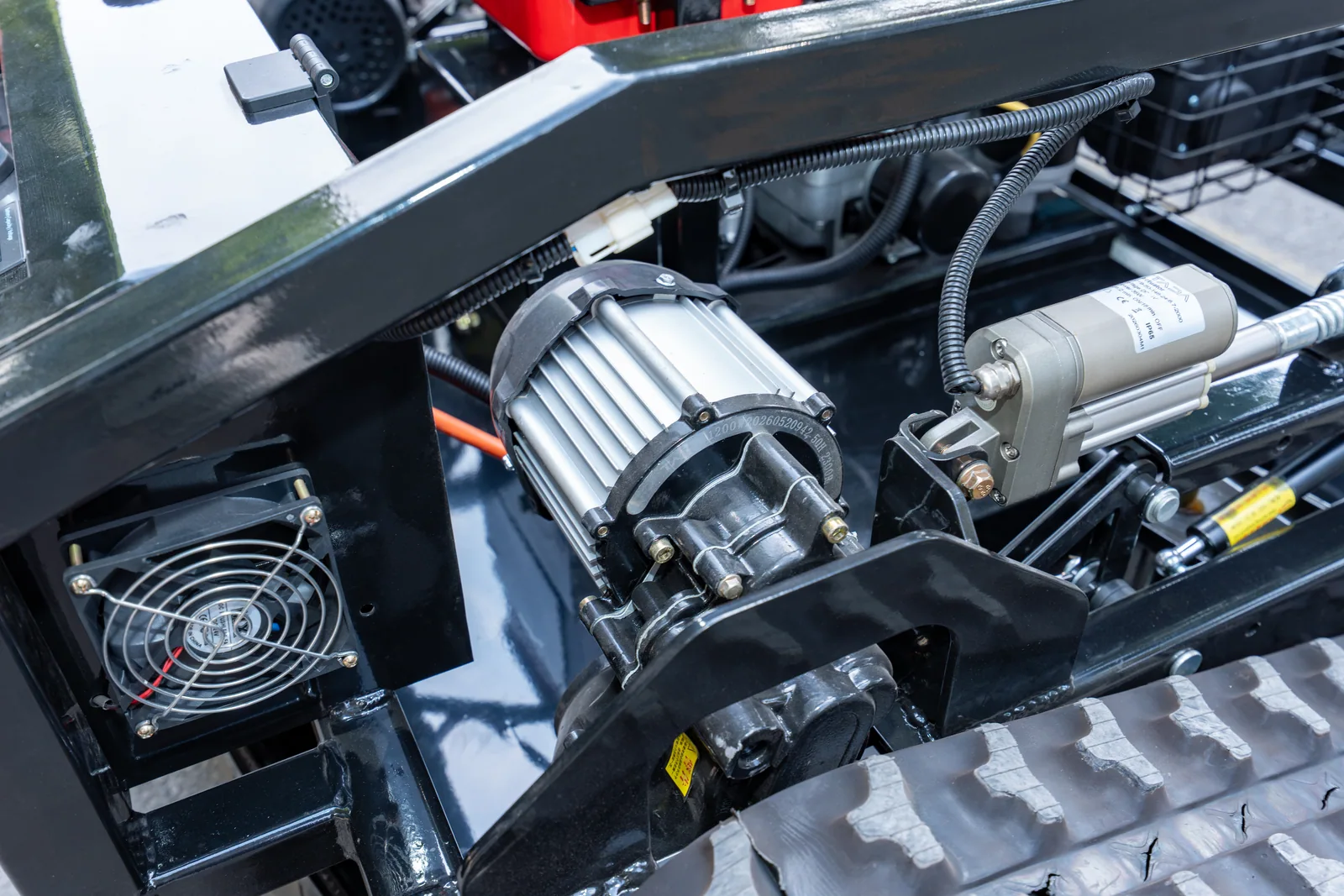

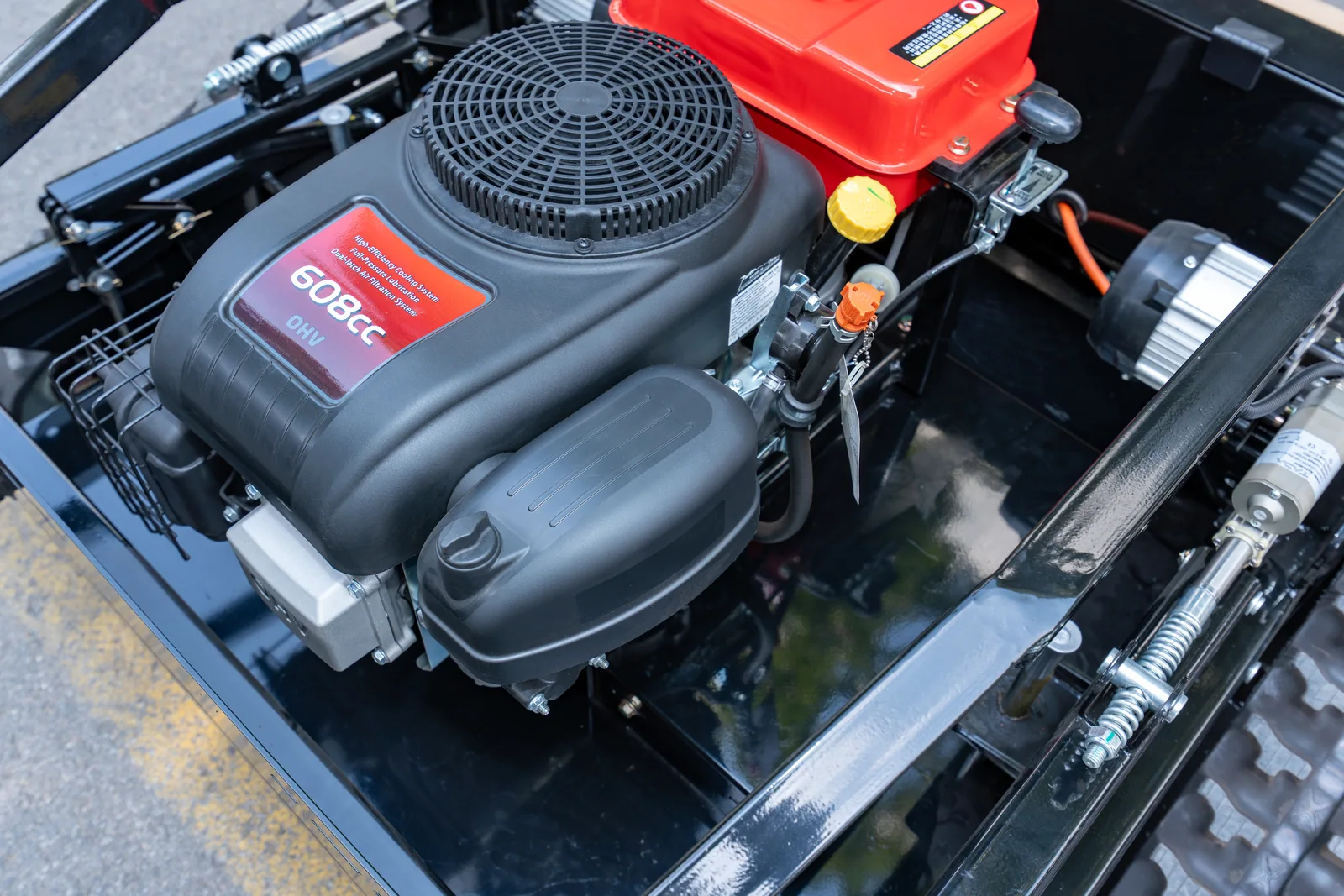

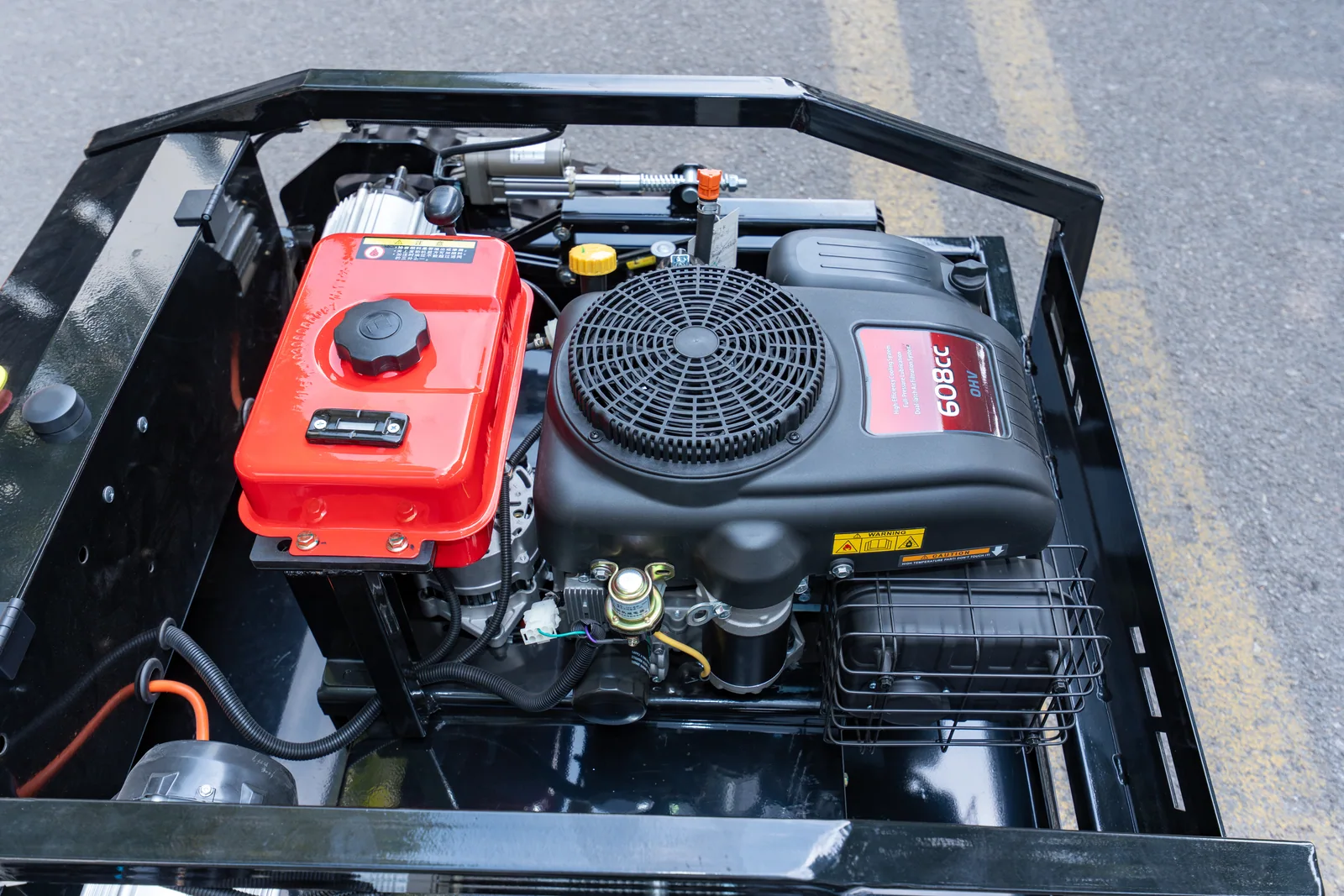

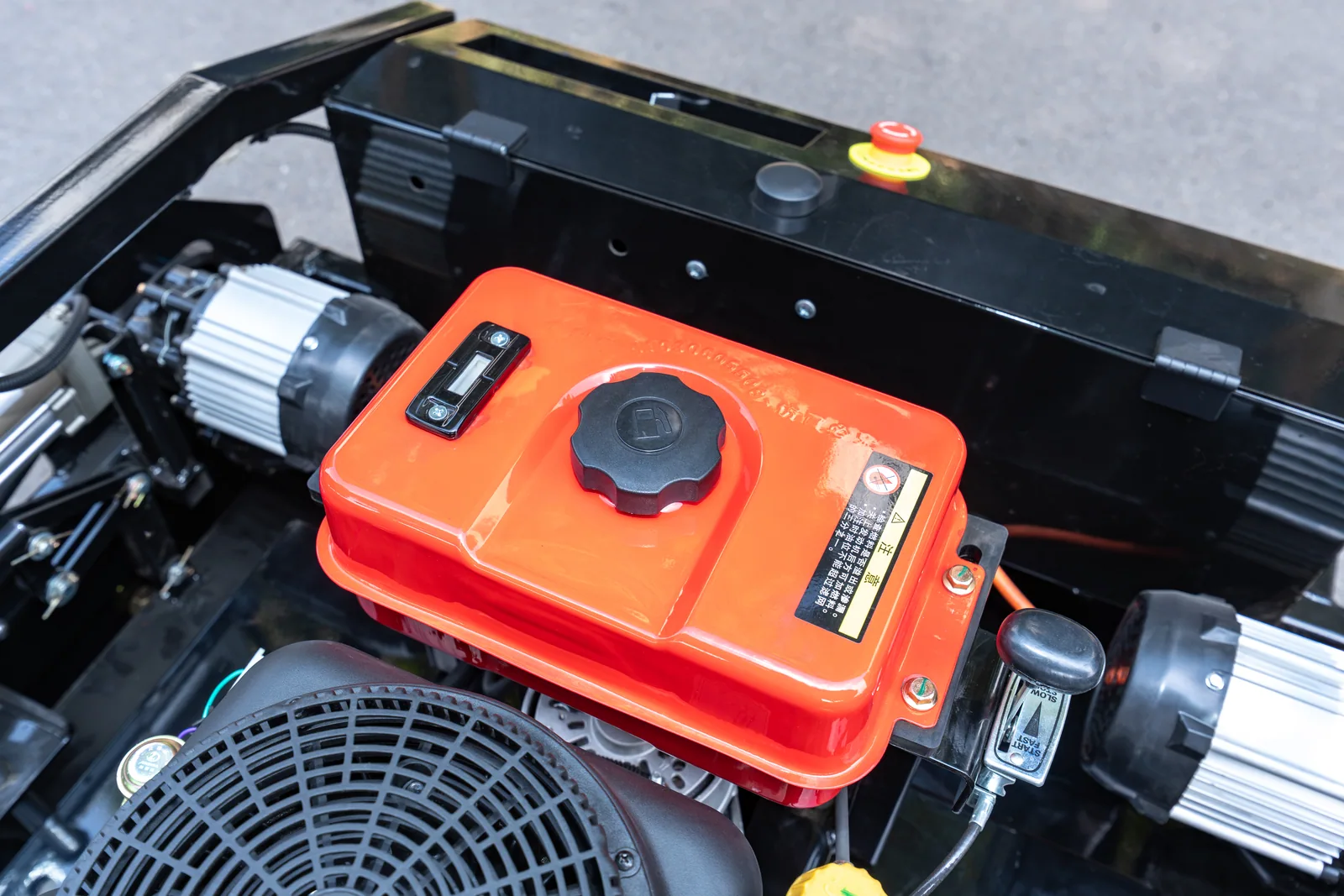

A Closer Look at the AY-1000.
OEM / ODM
Flexible support for your market.
Talk with AVYARD about branding, configuration requirements and export preparation for the AY-1000.
Discuss your requirements- 01OEM Branding
- 02Color Options
- 03Configuration Support
- 04Export Packaging
AY-1000 / FAQ
Questions about the AY-1000.
What are the AY-1000 cutting width and cutting-height range?
The AY-1000 has a 1000 mm cutting width and a 20–100 mm cutting-height range.
Which power is listed for the AY-1000?
The model information lists 23 HP power.
Can the cutting deck be adjusted remotely?
The AY-1000 has a remote deck lift for cutting-height adjustment.
Can AVYARD discuss OEM requirements and shipping for this model?
Share your branding, configuration and destination requirements with the AVYARD team to discuss available options.
