Excavation Range
The listed working range includes a maximum digging depth of 1,600 mm and reach of 3,300 mm.
AY12 / 5 views MINI EXCAVATORS / AY12

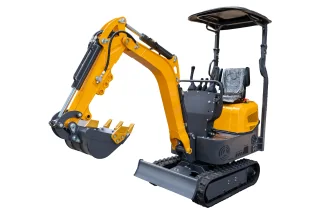

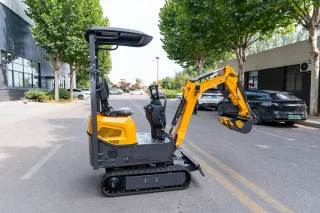

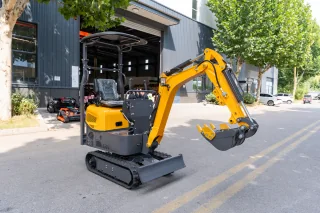

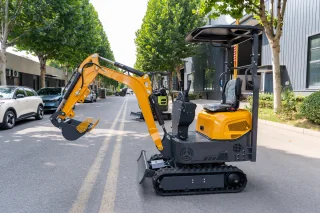

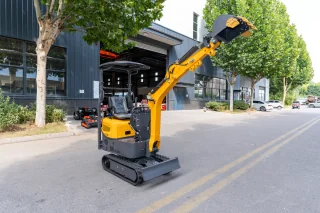

AY12 Mini Excavator
A compact excavator with an 800 kg operating weight, a 0.025 m³ bucket capacity and a maximum digging depth of 1,600 mm.
- Operating Weight
- 800 kg
- Max Digging Depth
- 1,600 mm
- Bucket Capacity
- 0.025 m³
- Max Digging Reach
- 3,300 mm
AVYARD / AY12
DESIGN & OPERATION
Features built around the work.
Key features and operating details for the AY12.

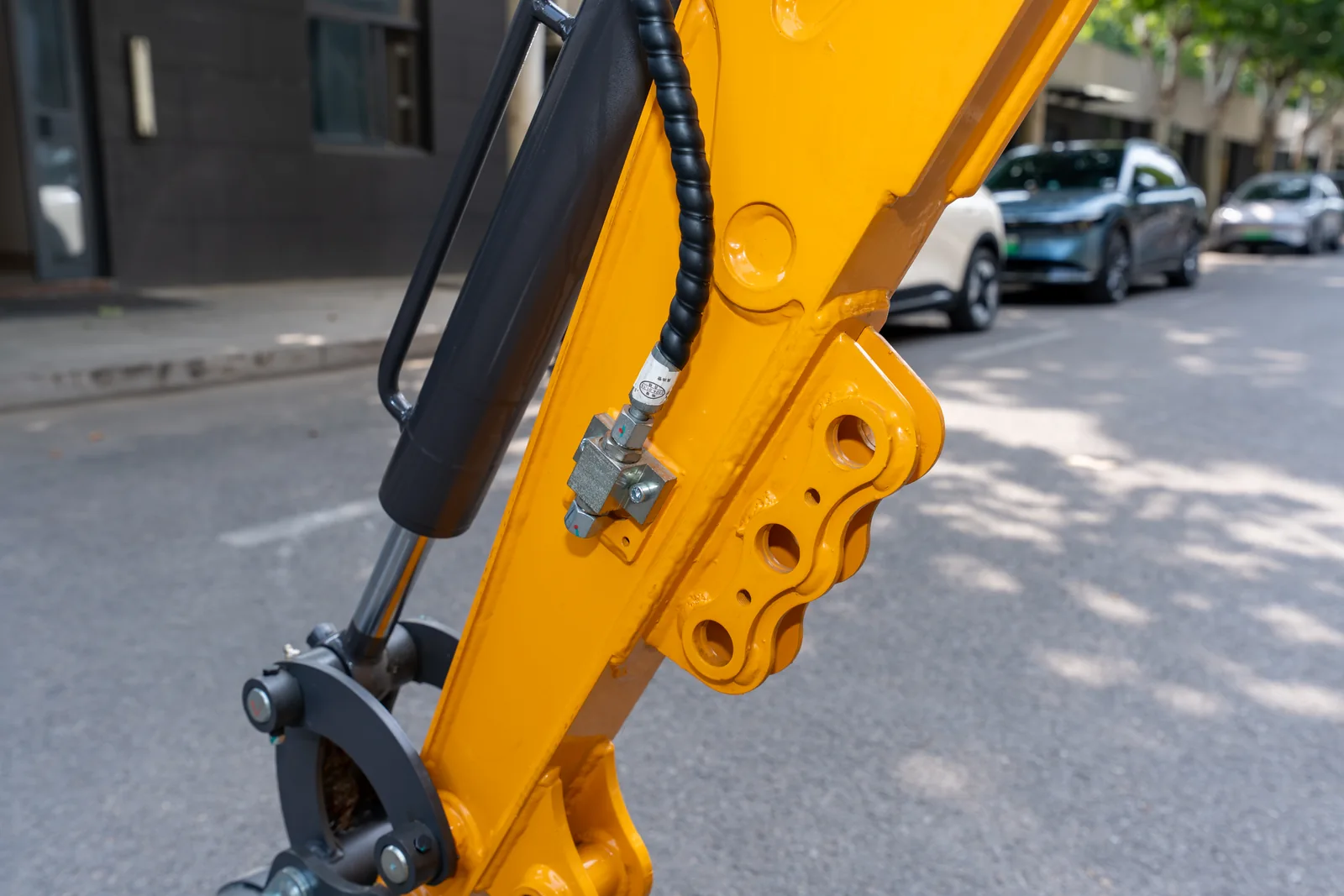

Hydraulic System
Hydraulic data includes a maximum flow of 23 L/min and working pressure of 16 MPa.

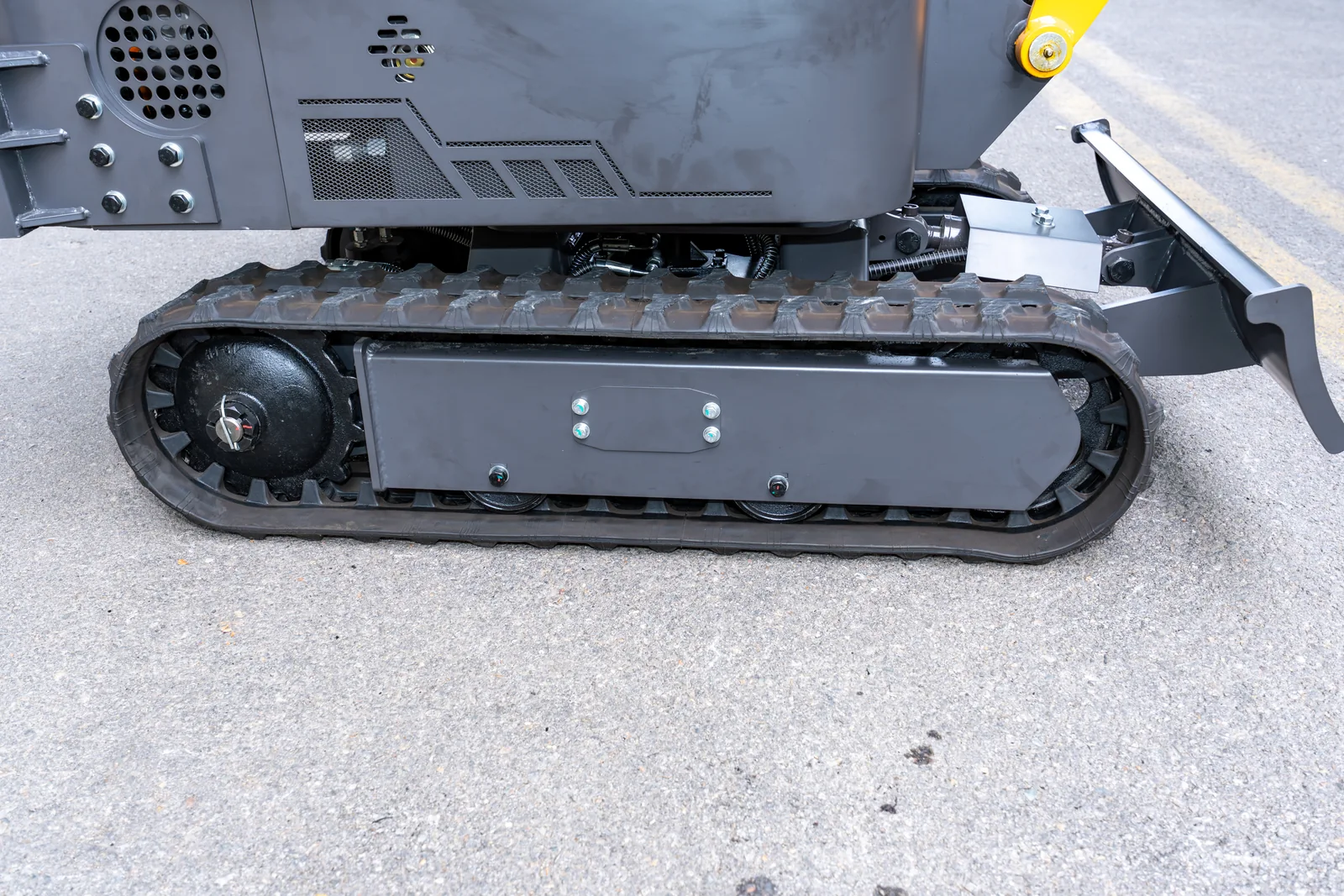

Tracked Undercarriage
Track dimensions include a 1,200 mm track length, 500 mm gauge and 180 mm track width.
Swing Specifications
Swing speed is listed at 13 rpm, with an 800 mm tail swing radius.

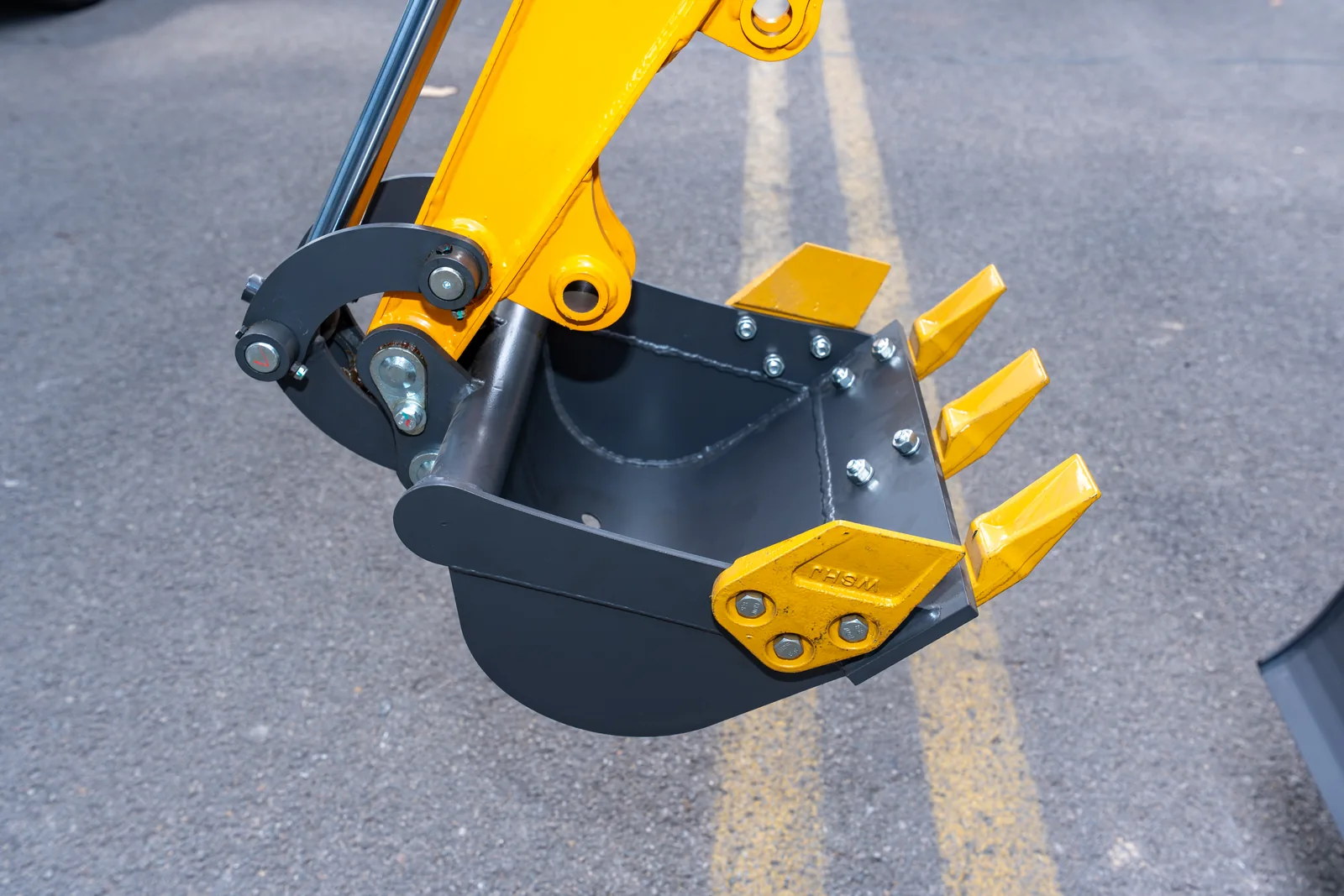

Digging Forces
The listed arm digging force is 5 kN and bucket digging force is 7 kN.

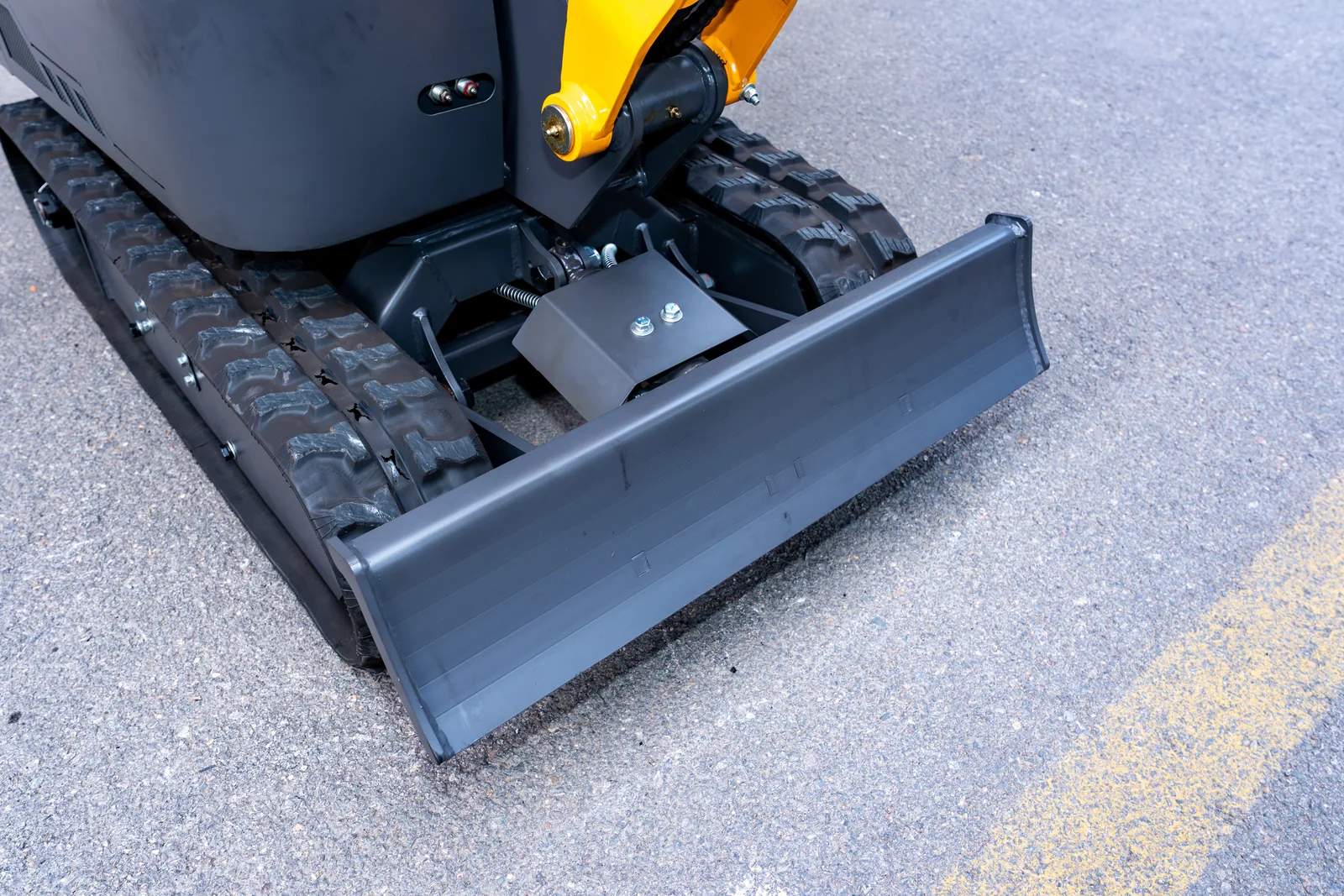

Front Dozer Blade
A front dozer blade is shown on the machine; the listed maximum dozing height/depth is 190 mm.
TECHNICAL DATA
AY12 Specifications
Model data supplied for the AY12. Confirm final configuration with the AVYARD team.
Machine
- Operating Weight
- 800 kg
- Overall Length
- 2,250 mm
- Overall Width
- 800–950 mm
- Height to Top of Cab
- 2,200 mm
- Height to Top of Boom
- 2,000 mm
- Minimum Ground Clearance
- 100 mm
- Counterweight Ground Clearance
- 400 mm
Working Range
- Maximum Digging Height
- 2,500 mm
- Maximum Dumping Height
- 1,400 mm
- Maximum Digging Depth
- 1,600 mm
- Maximum Digging Reach
- 3,300 mm
- Minimum Swing Radius
- 1,100 mm
- Tail Swing Radius
- 800 mm
- Boom Length
- 800 mm
- Arm Length
- 1,330 mm
Bucket & Forces
- Bucket Capacity
- 0.025 m³
- Arm Digging Force
- 5 kN
- Bucket Digging Force
- 7 kN
- Maximum Traction
- 13.5 kN
- Maximum Dozing Height/Depth
- 190 mm

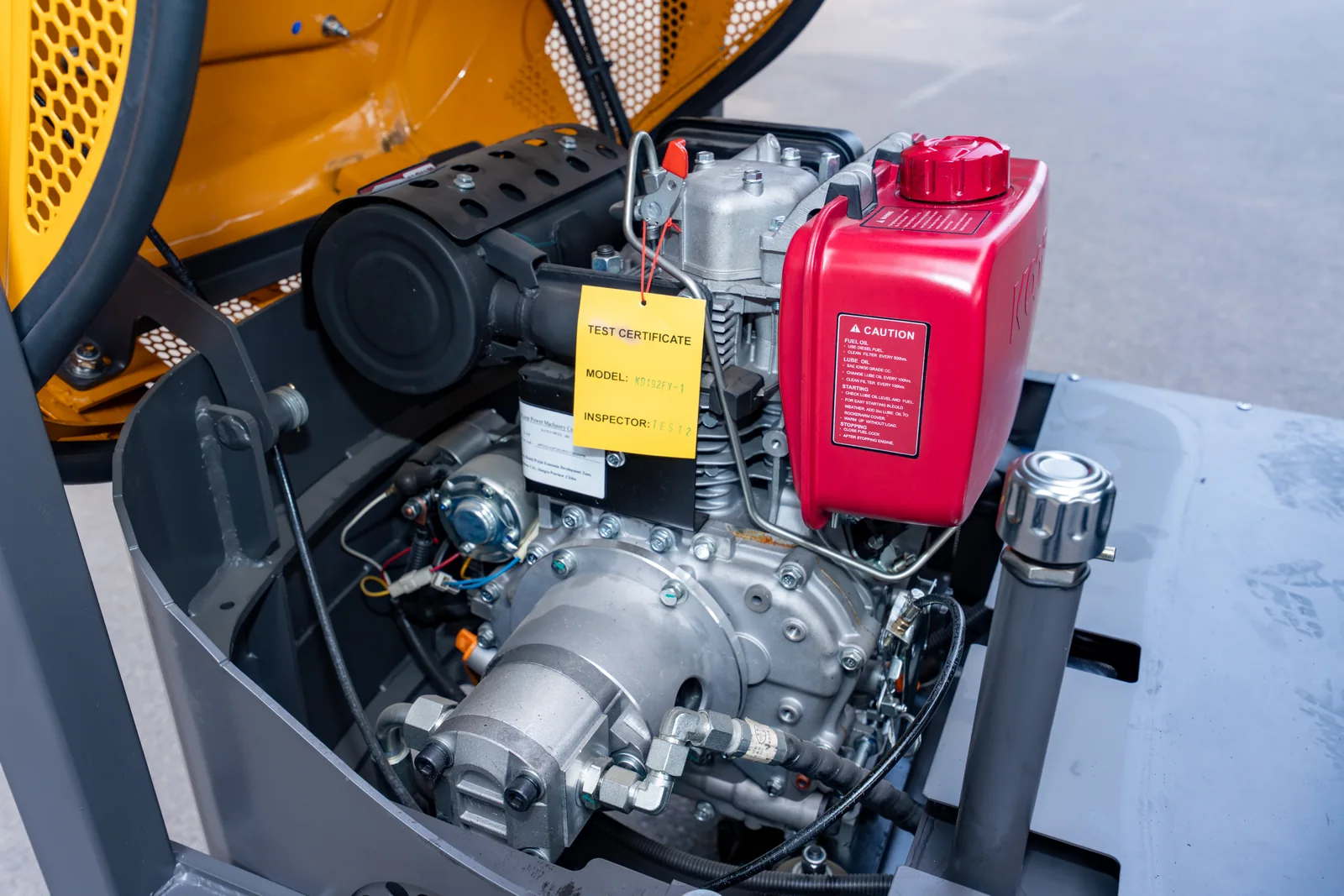

Engine & Fuel
- Engine Model
- K00P / B&S
- Rated Power / Speed
- 7 kW / 9.9 kW / 3,600 rpm
- Maximum Torque
- 28.5 N·m
- Fuel Tank Capacity
- 10.2 L
- Engine Oil Capacity
- 1.1 L
Hydraulic System
- Hydraulic Pump Model
- YTYLX
- Maximum Flow
- 23 L/min
- Working Pressure
- 16 MPa
- Hydraulic Oil Tank Capacity
- 20 L
- Control Valve Model
- BEIFANG
- Swing Motor Model
- BMK
- Travel Motor Model
- 4K-400
Travel & Undercarriage
- Travel Speed
- 2.5 km/h
- Swing Speed
- 13 rpm
- Maximum Climbing Gradient
- 30%
- Average Ground Pressure
- 20 kPa
- Track Ground Length
- 1,000 mm
- Track Length
- 1,200 mm
- Track Gauge
- 500 mm
- Track Width
- 180 mm
- Track Shoe Width
- 130 mm
- Track Shoe Thickness
- 4 mm
PRODUCT DETAILS
A Closer Look at the AY12.
OEM / ODM
Flexible support for your market.
Talk with AVYARD about branding, configuration requirements and export preparation for the AY12.
Discuss your requirements- 01OEM branding
- 02Product configuration
- 03Spare parts support
- 04Export packaging
AY12 / FAQ
Questions about the AY12.
What are the AY12's listed digging range figures?
The AY12 data lists a maximum digging depth of 1,600 mm, maximum digging reach of 3,300 mm, maximum digging height of 2,500 mm and maximum dumping height of 1,400 mm.
What engine information is available for the AY12?
The available data lists engine model K00P / B&S and rated power/speed notation of 7 kW / 9.9 kW / 3,600 rpm. Contact AVYARD to confirm the configuration for your inquiry.
Can I discuss the AY12 configuration for my site?
Yes. Share the work scope, access limits and ground conditions so the AVYARD team can review the available AY12 information with you.
Can I ask about OEM requirements or shipping?
Include your branding, configuration and destination requirements in the inquiry. The AVYARD team can discuss the relevant details with you.
