Excavation Range
Maximum digging depth is 2,000 mm, with a maximum reach of 3,700 mm and digging height of 3,180 mm.
AY18 / 5 views MINI EXCAVATORS / AY18

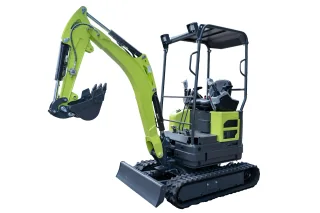

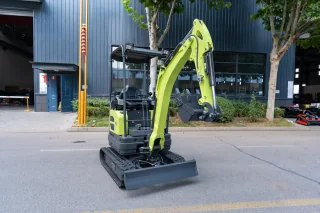

AY18 Mini Excavator
A compact tracked excavator with a 0.025 m³ bucket and a maximum digging depth of 2,000 mm.
- Max Digging Depth
- 2,000 mm
- Max Digging Reach
- 3,700 mm
- Max Digging Height
- 3,180 mm
- Bucket Capacity
- 0.025 m³
AVYARD / AY18
DESIGN & OPERATION
Features built around the work.
Key features and operating details for the AY18.

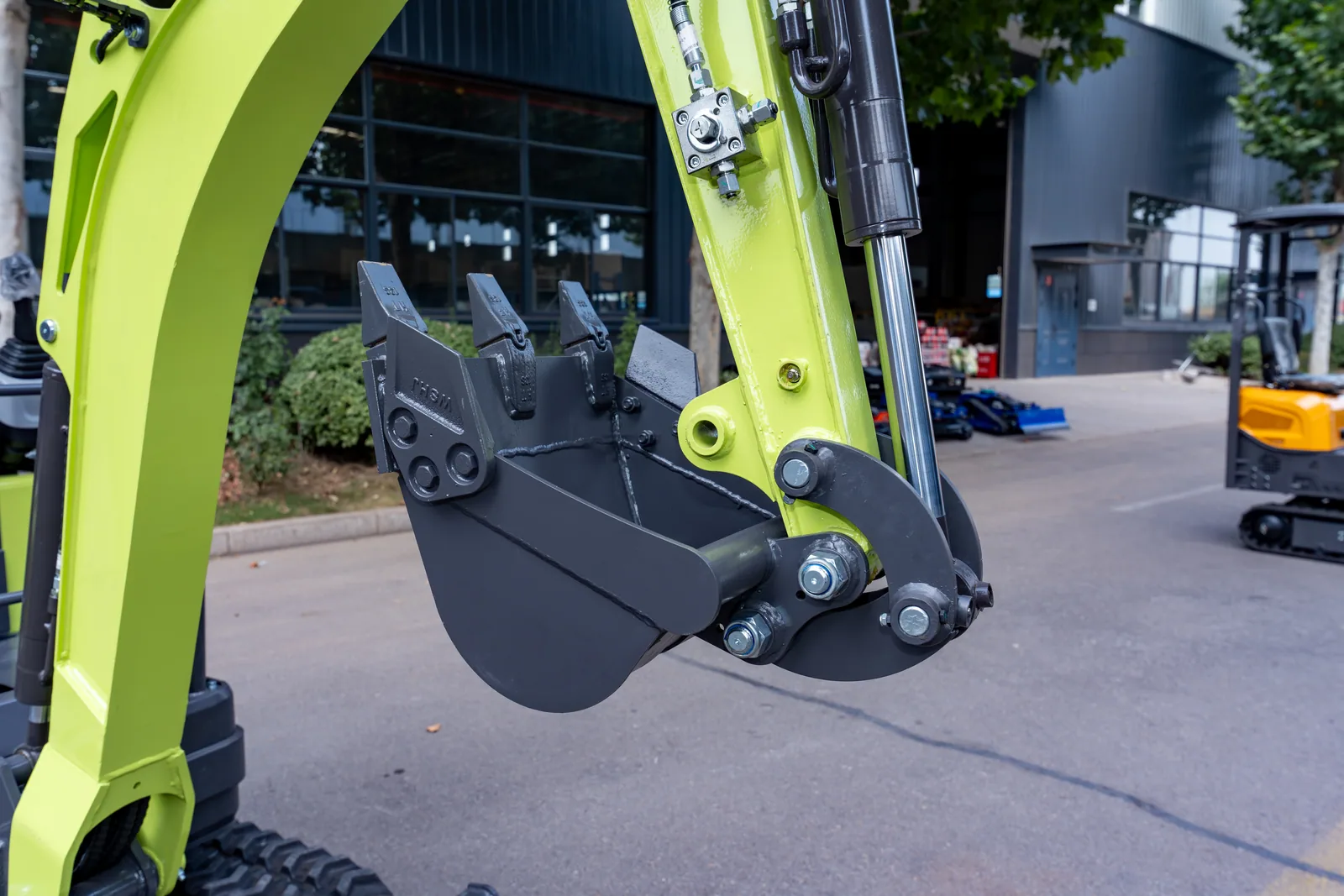

Bucket Capacity
The AY18 bucket capacity is specified at 0.025 m³.
Hydraulic System
Hydraulic flow is rated at 18 L/min, with working pressure at 16 MPa.

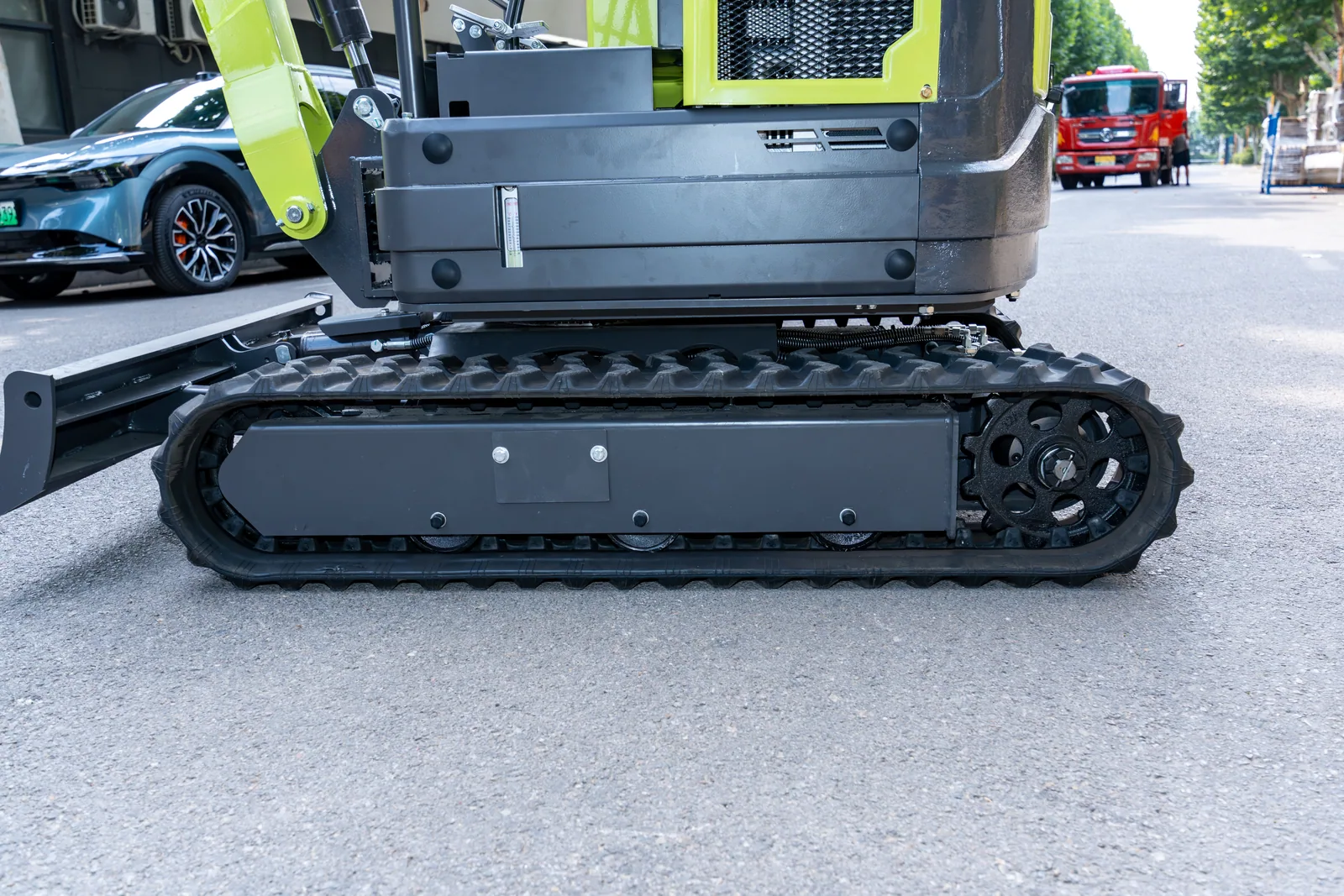

Tracked Undercarriage
The tracked undercarriage has a 230 mm track width and 710 mm track gauge, with 33 kPa average ground pressure.

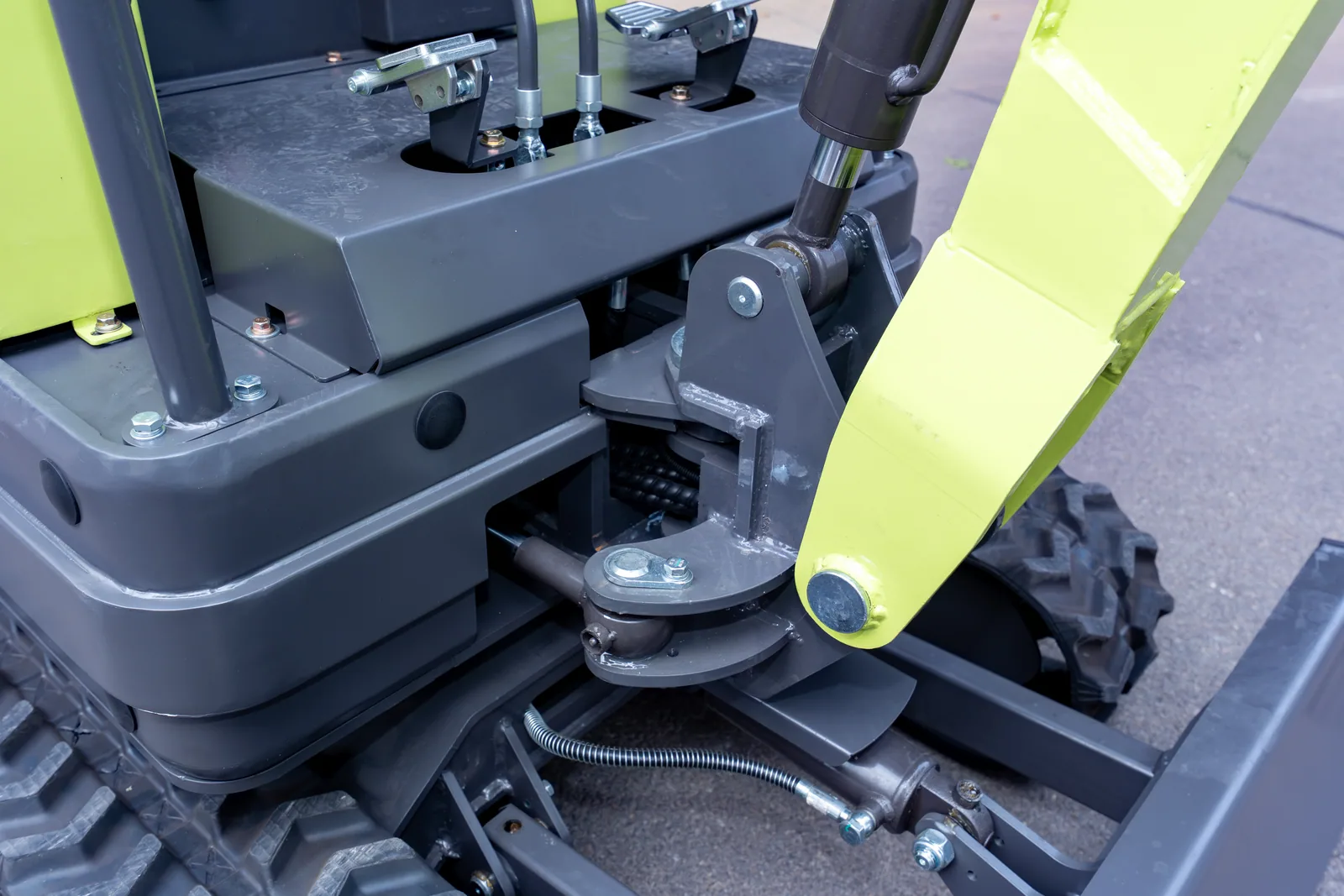

Swing System
Swing speed is specified at 13 rpm with a DMK swing motor.

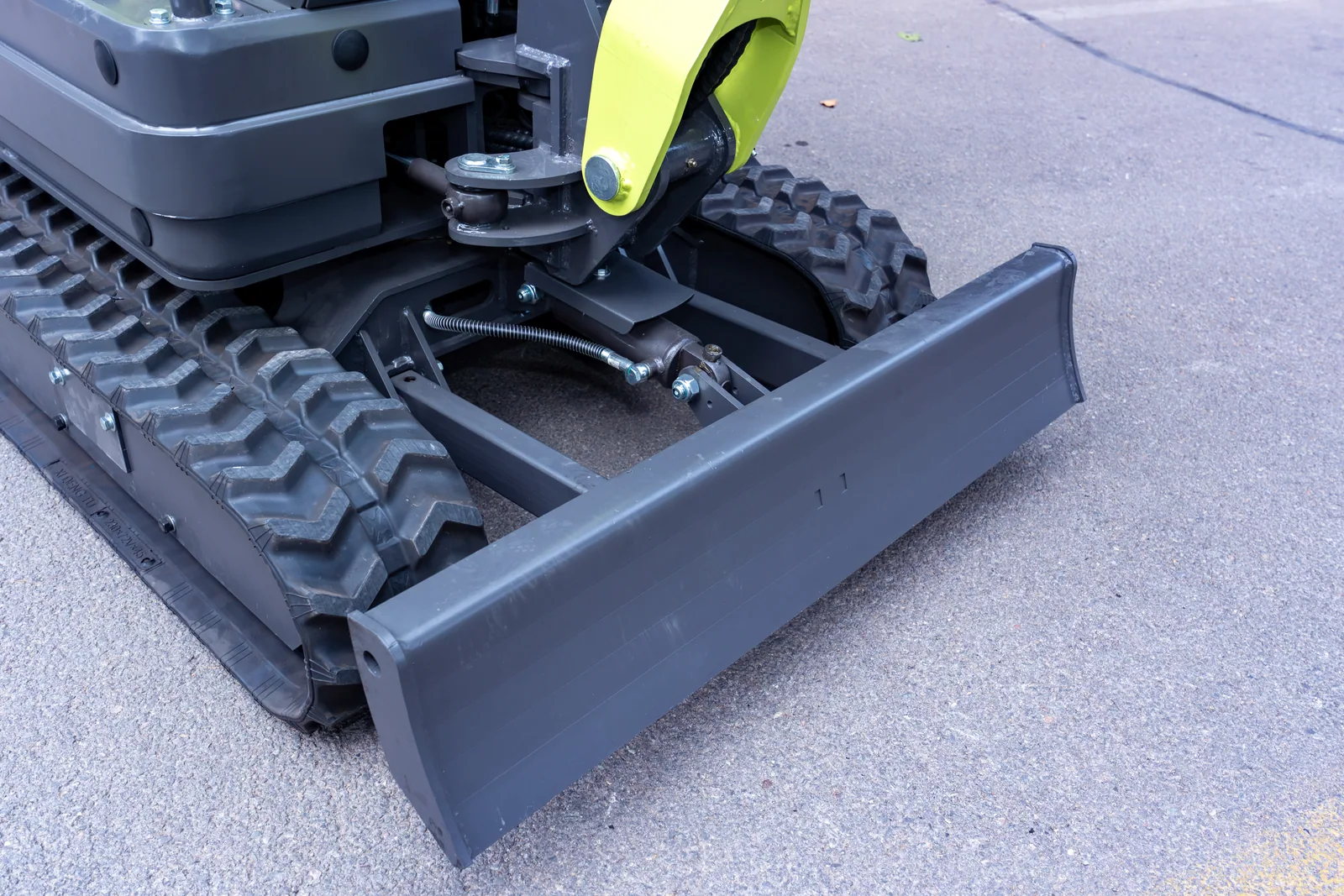

Front Dozer Blade
The AY18 is configured with a front-mounted dozer blade.
TECHNICAL DATA
AY18 Specifications
Model data supplied for the AY18. Confirm final configuration with the AVYARD team.
Machine
- Overall Length
- 2,050 mm
- Overall Width
- 1,155 mm
- Height to Top of Cab
- 2,310 mm
- Height to Top of Boom
- 2,410 mm
- Cabin Width
- 950 mm
- Minimum Ground Clearance
- 100 mm
- Counterweight Ground Clearance
- 440 mm
- Tail Swing Radius
- 700 mm
- Ground Length for Transportation
- 1,670 mm
Working Range
- Maximum Digging Height
- 3,180 mm
- Maximum Dumping Height
- 1,700 mm
- Maximum Digging Depth
- 2,000 mm
- Maximum Vertical Wall Digging Depth
- 1,900 mm
- Maximum Digging Reach
- 3,700 mm
- Minimum Swing Radius
- 1,625 mm
- Boom Length
- 1,700 mm
- Arm Length
- 1,100 mm
- Deflection Angle (Left / Right)
- 55° / 55°
Bucket & Forces
- Bucket Capacity
- 0.025 m³
- Arm Digging Force
- 6 kN
- Bucket Digging Force
- 10 kN
- Maximum Traction
- 13.5 kN
Engine & Fuel
- Engine Models Listed
- Laidong 385 / Kubota D722
- Fuel Tank Capacity
- 10.2 L
Hydraulic System
- Hydraulic Pump Model
- TADA
- Maximum Flow
- 18 L/min
- Working Pressure
- 16 MPa
- Hydraulic Oil Tank Capacity
- 20 L
- Control Valve Model
- BEIFANG
Travel & Undercarriage
- Travel Motor Model
- 6K-400
- Swing Motor Model
- DMK
- Travel Speed
- 2.5 km/h
- Swing Speed
- 13 rpm
- Maximum Climbing Angle
- 30°
- Average Ground Pressure
- 33 kPa
- Track Ground Length
- 1,300 mm
- Track Length
- 1,500 mm
- Track Gauge
- 710 mm
- Track Width
- 230 mm
- Track Shoe Width
- 180 mm
- Turntable Width
- 920 mm
PRODUCT DETAILS
A Closer Look at the AY18.
OEM / ODM
Flexible support for your market.
Talk with AVYARD about branding, configuration requirements and export preparation for the AY18.
Discuss your requirements- 01OEM branding
- 02Product configuration
- 03Spare parts support
- 04Export packaging
AY18 / FAQ
Questions about the AY18.
What is the AY18's maximum digging depth?
The AY18 product data lists a maximum digging depth of 2,000 mm, a maximum reach of 3,700 mm and a maximum digging height of 3,180 mm.
What bucket capacity is listed for the AY18?
The listed bucket capacity is 0.025 m³.
What engine models are listed for the AY18?
The available AY18 data lists Laidong 385 and Kubota D722. Contact AVYARD to confirm the specific configuration for your inquiry.
Can I discuss AY18 requirements for my site?
Share the work scope, access limits and ground conditions so the AVYARD team can review the available AY18 information with you.
Can I ask about OEM requirements or shipping?
Include your branding, configuration and destination requirements in the inquiry. The AVYARD team can discuss the relevant details with you.
