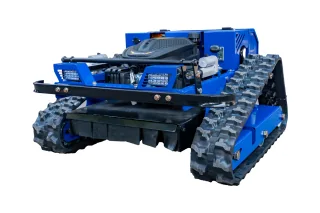

AY-500 remote control mower in white-background front three-quarter view AY-500 / 5 views

REMOTE CONTROL MOWERS / AY-500

AY-500 Remote Control Mower

Compact tracked remote control mower designed for slope mowing, orchards, farms and vegetation maintenance.

Request a Quote
Cutting Width
500 mm
Cutting Height
20–150 mm
Machine Weight
130 kg
Travel Speed
4 km/h

EngineRV225 Battery 24V / 24Ah

Request a Quote View Specifications

AVYARD / AY-500

DESIGN & OPERATION

Features built around the work.

Key features and operating details for the AY-500.

01

Remote Control Operation

Operate the AY-500 remotely using its supplied control system.

02

Adjustable Cutting Height

Cutting height is specified from 20 to 150 mm, with remote deck lift.

03

Tracked Chassis

The machine uses a tracked chassis for outdoor mowing applications.

04

Remote Deck Lift

Raise or lower the cutting deck by remote control.

05

Remote Start / Stop

Engine start and stop functions are available from the remote control.

06

Self-Generating Electrical System

The machine includes a self-generating electrical system and an integrated circuit controller.

TECHNICAL DATA

AY-500 Specifications

Model data supplied for the AY-500. Confirm final configuration with the AVYARD team.

Dimensions & Weight

Model
AY-500
Machine Dimensions
900 × 930 × 520 mm
Packing Dimensions
950 × 990 × 670 mm
Machine Weight
130 kg
Gross Weight
170 kg

Cutting System

Cutting Width
500 mm
Cutting Height
20–150 mm

Drive & Control

Travel Speed
4 km/h
Battery
24V / 24Ah
Control System
Remote control; integrated circuit controller
Electrical System
Self-generating system

Engine & Power

Engine
RV225
Fuel Tank
1.2 L
Fuel Consumption
1.2 L/h
Engine Oil
0.6 L

PRODUCT DETAILS

A Closer Look at the AY-500.

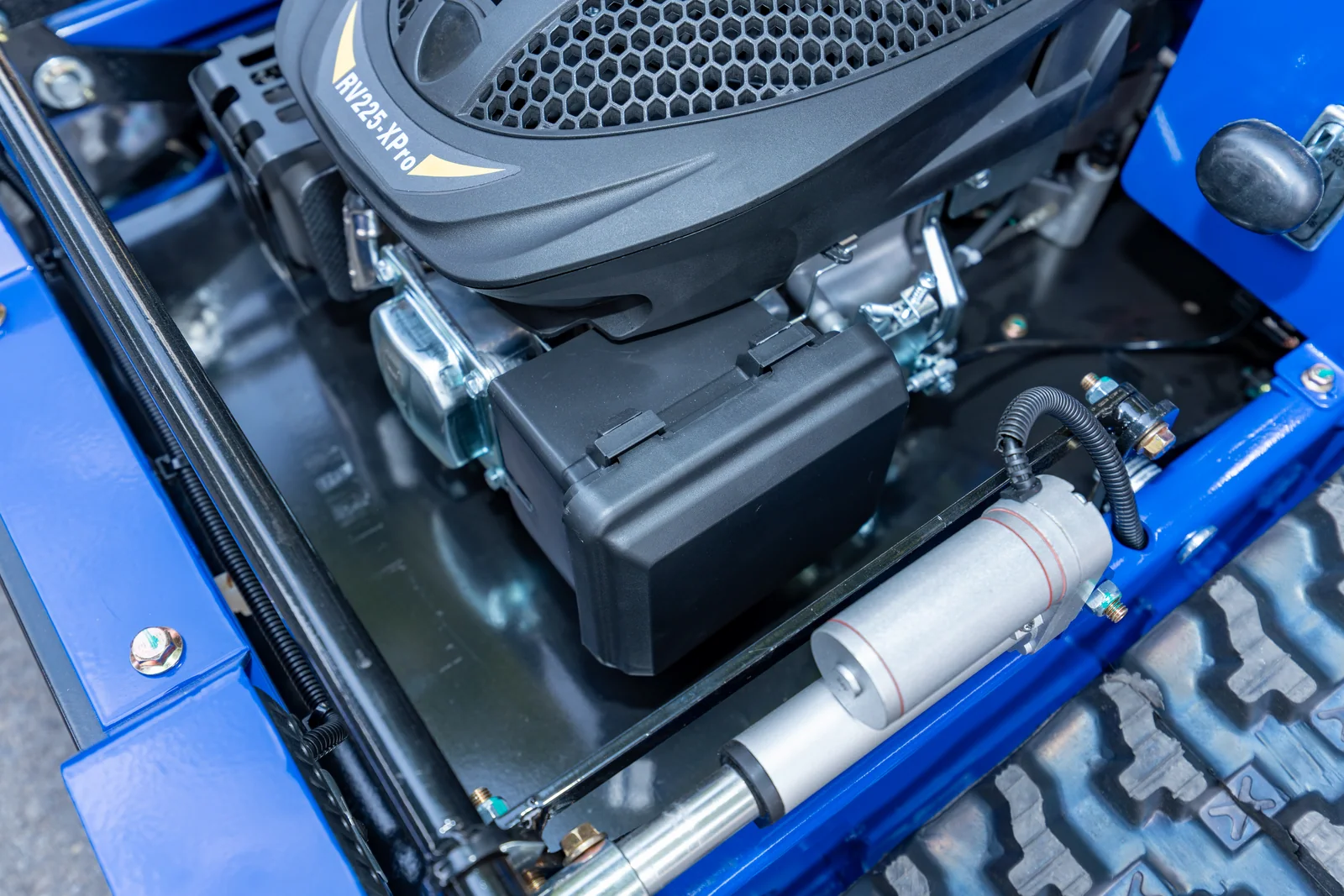

AY-500 engine and upper mechanical components viewed from above
Engine Compartment

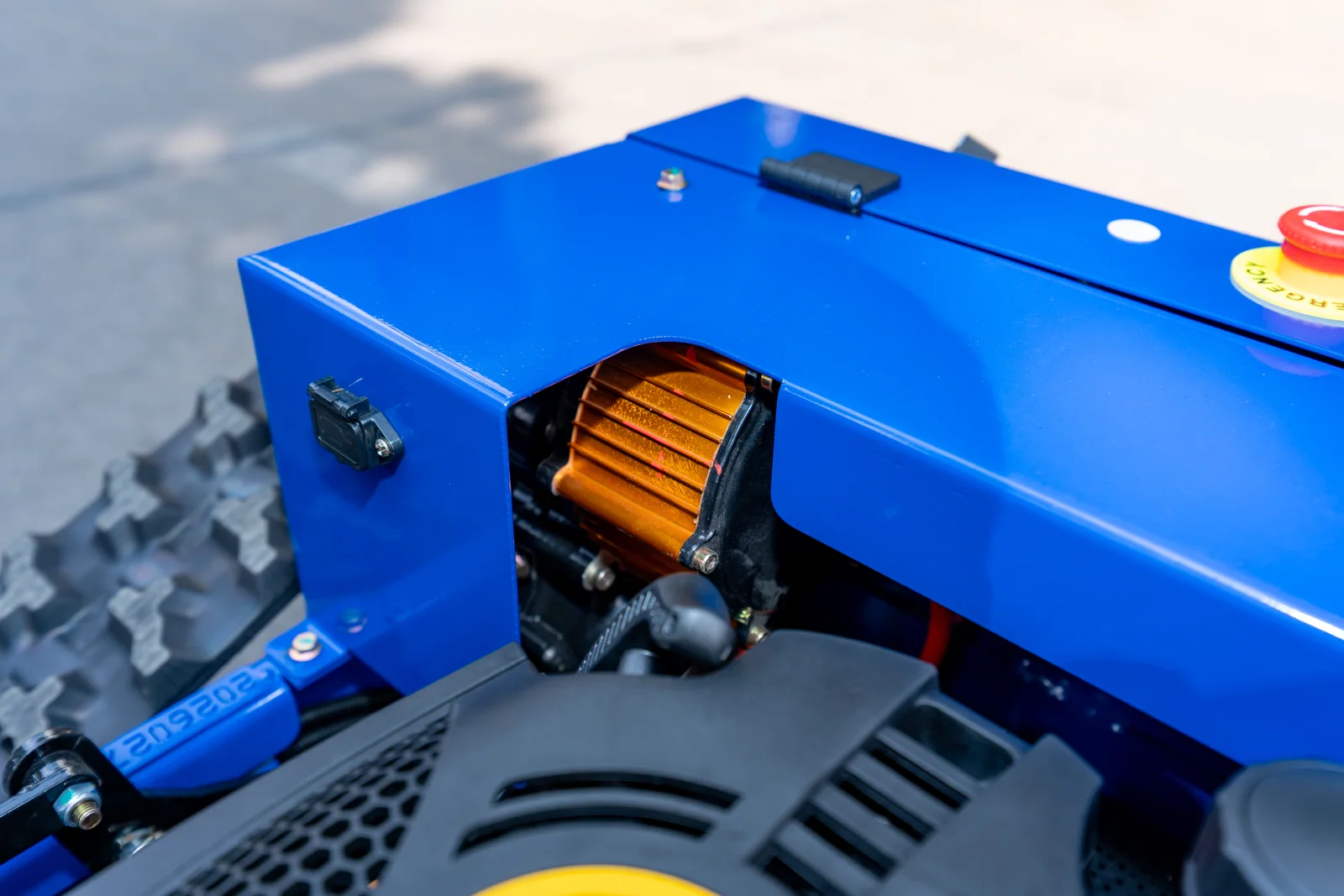

AY-500 electrical enclosure opened to show its installed component
Electrical Enclosure

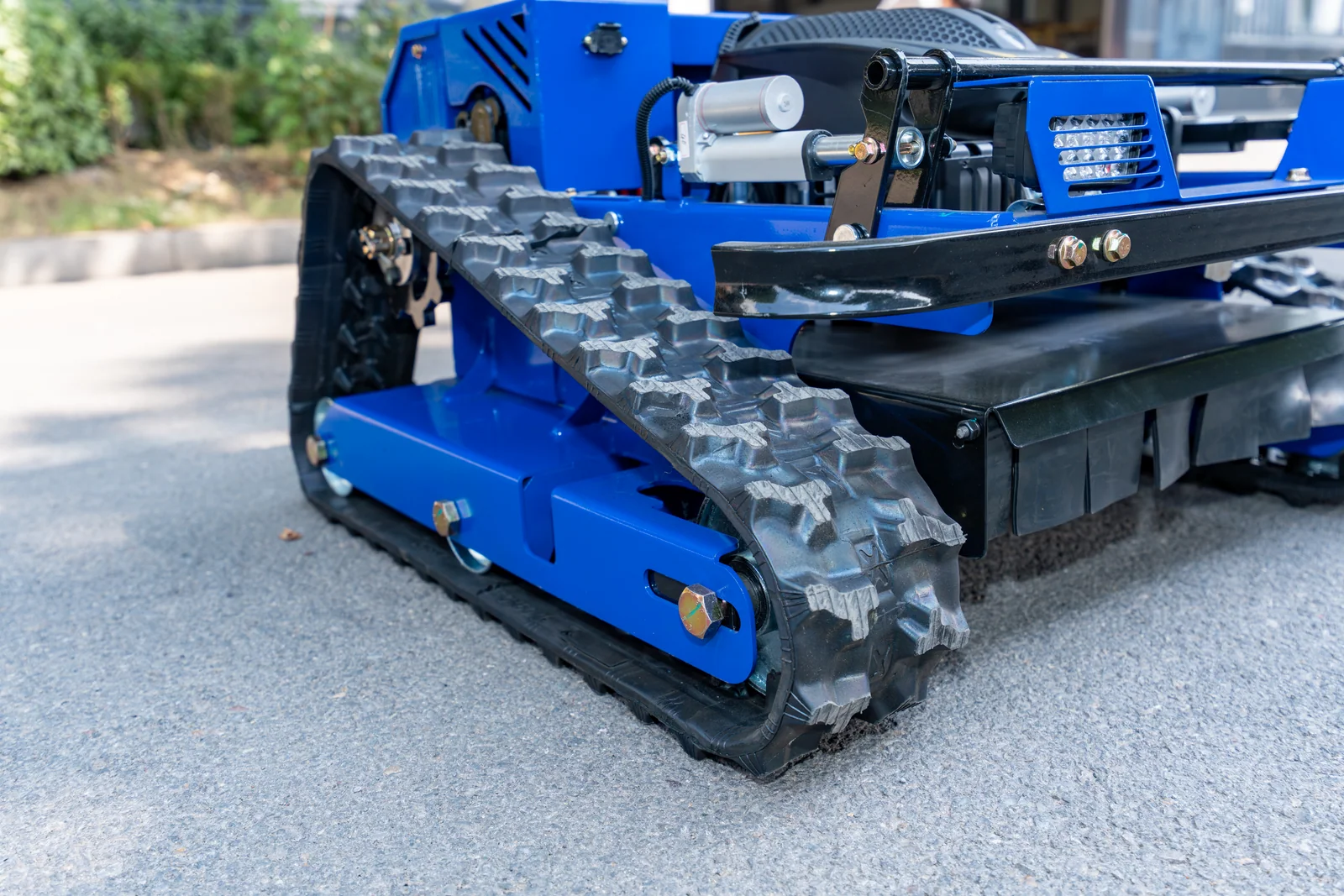

AY-500 tracked chassis and front cutting-deck housing
Tracked Chassis

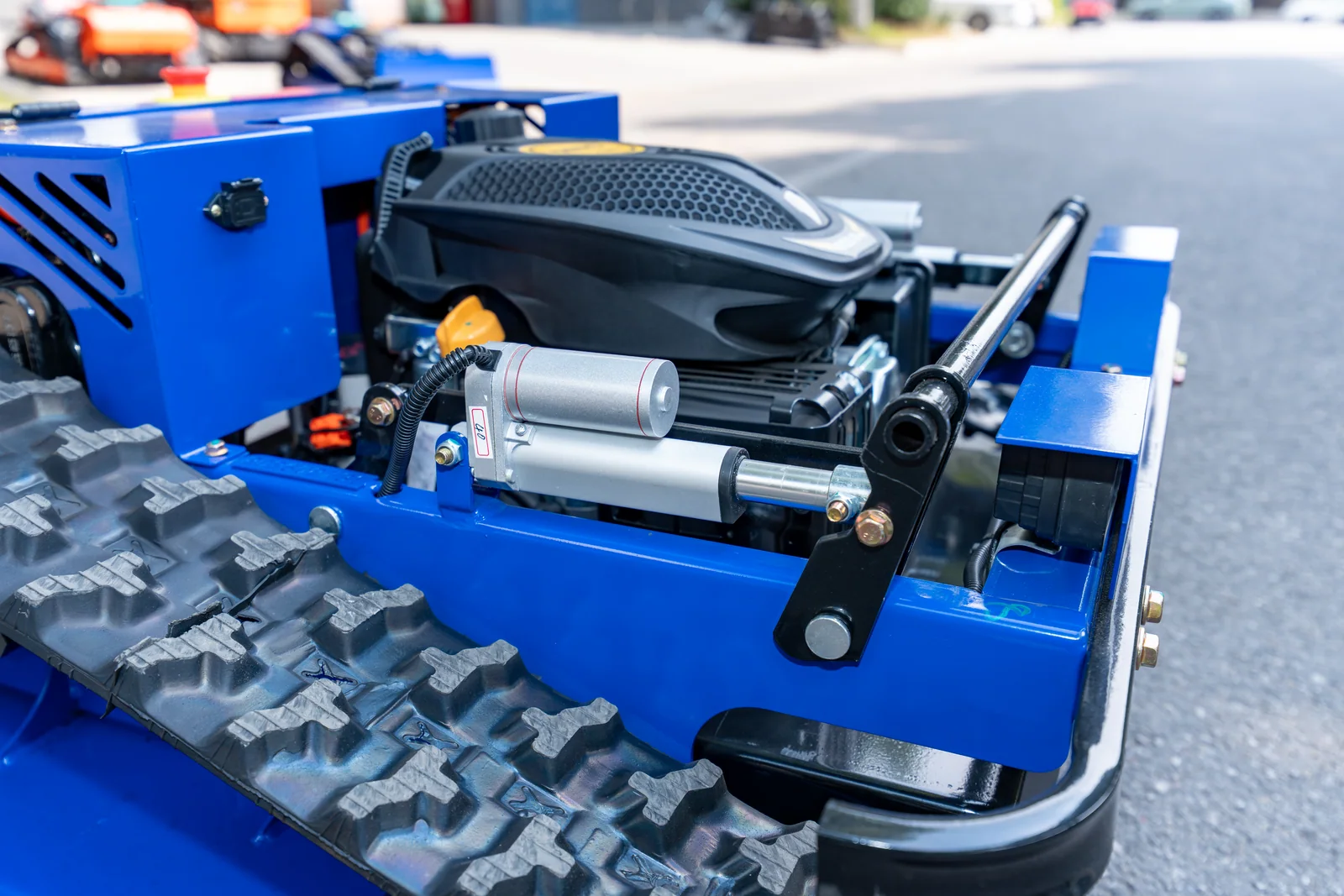

AY-500 cutting-deck lift mechanism beside the track assembly
Cutting Deck Lift

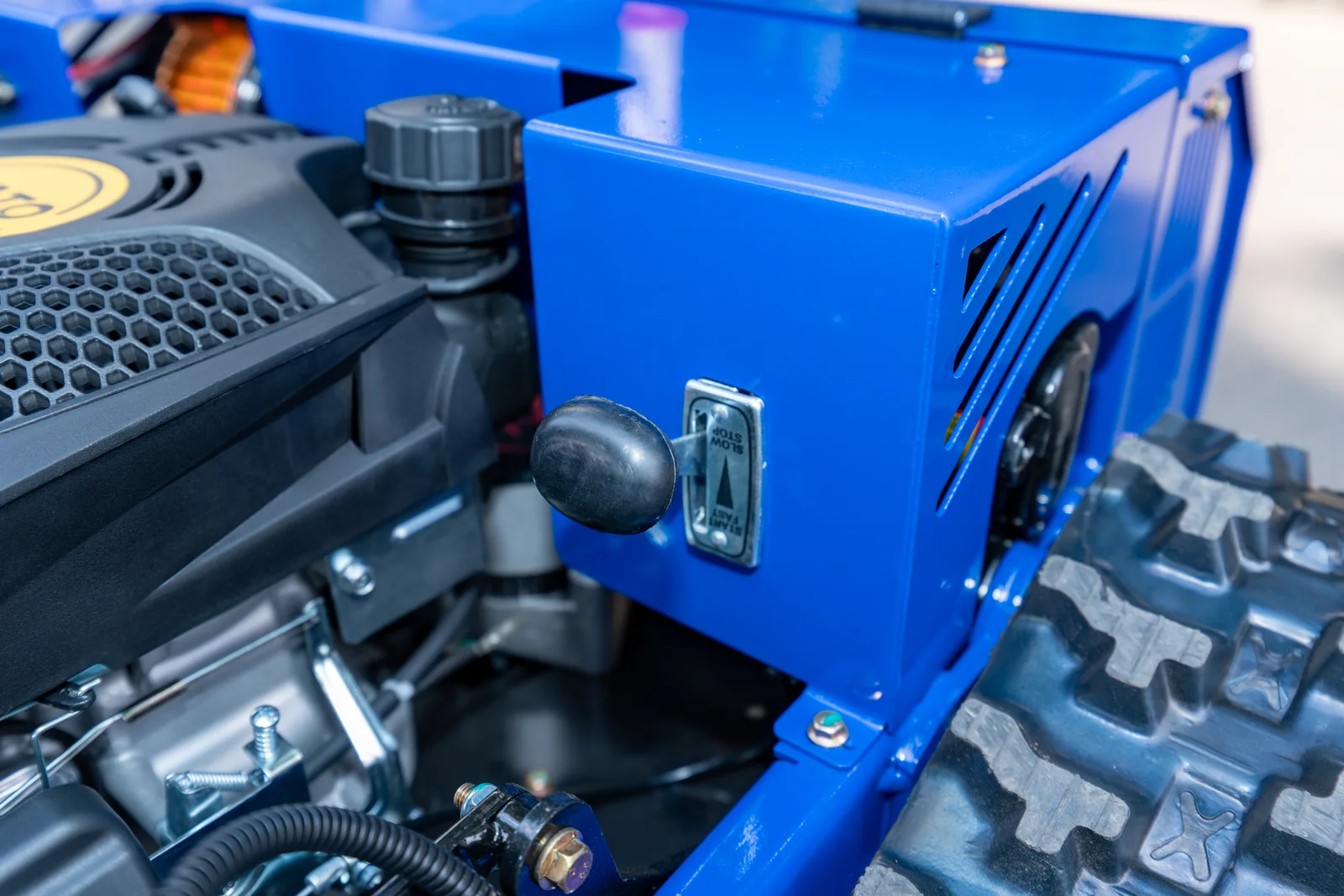

AY-500 side-mounted control switch on the machine enclosure
Control Switch

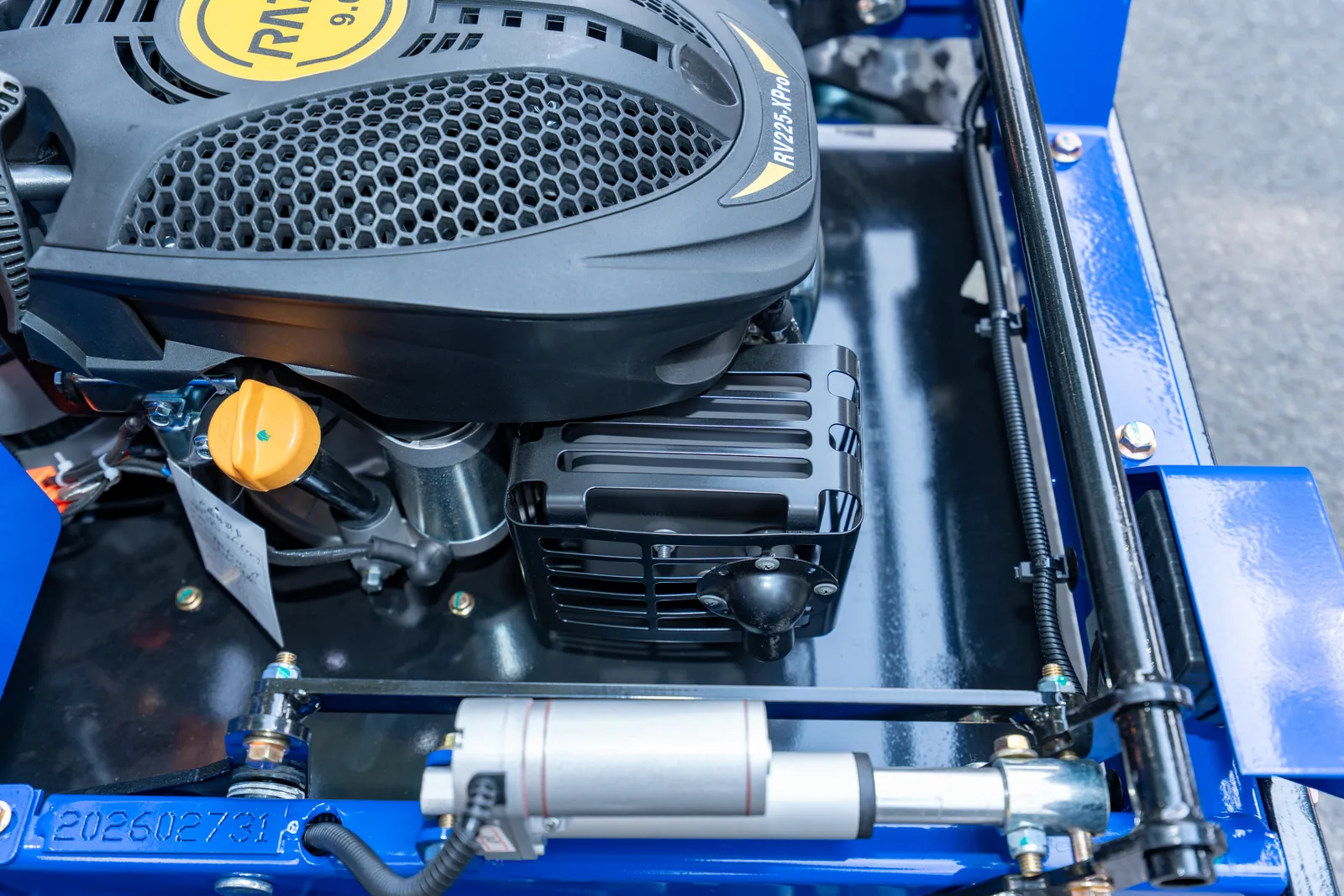

AY-500 engine viewed from the side with its cylindrical mechanical components
Engine Side View

OEM / ODM

Flexible support for your market.

Talk with AVYARD about branding, configuration requirements and export preparation for the AY-500.

Discuss your requirements
  • 01OEM Branding
  • 02Color Options
  • 03Configuration Support
  • 04Export Packaging

AY-500 / FAQ

Questions about the AY-500.

Ask our team
What type of work is the AY-500 designed for?

The AY-500 is described for slope mowing, orchards, farms and vegetation maintenance.

Can the cutting height be adjusted remotely?

Its cutting height is specified from 20 to 150 mm, and the deck lift is remote-operated.

Does the AY-500 support OEM customization?

OEM / ODM solutions are available. Contact AVYARD to discuss the requirements for your market.

How is the AY-500 prepared for export?

The listed packing dimensions are 950 × 990 × 670 mm, with a gross weight of 170 kg.
