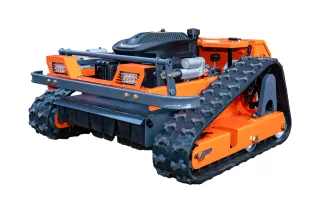

AY-600 remote control mower in white-background front three-quarter view

AY-600 / 5 views

REMOTE CONTROL MOWERS / AY-600

AY-600 Remote Control Mower

A tracked remote control mower with a 560 mm cutting width and cutting height adjustable from 20 to 150 mm.

Cutting Width: 560 mm
Cutting Height: 20–150 mm
Machine Weight: 163 kg
Travel Speed: 4 km/h

EngineRV225 Battery 24V / 24Ah

AVYARD / AY-600

DESIGN & OPERATION

Features built around the work.

Key features and operating details for the AY-600.

Remote Height Adjustment

The cutting deck lift is remotely controlled, with a specified cutting-height range of 20 to 150 mm.

Remote Engine Start / Stop

The AY-600 supports remote control for engine starting and stopping.

Tracked Running Gear

The AY-600 uses a tracked chassis for stable movement across outdoor terrain.

45° Climbing Capability

The AY-600 parameter sheet specifies a climbing angle of 45°.

Self-Generating Electrical System

The parameter sheet specifies a self-generating electrical system for onboard electrical support.

Integrated Circuit Controller

The model is equipped with an integrated circuit controller as specified in the product parameter sheet.

TECHNICAL DATA

AY-600 Specifications

Model data supplied for the AY-600. Confirm final configuration with the AVYARD team.

Dimensions & Weight

Model: AY-600
Machine Dimensions: 940 × 940 × 560 mm
Packing Dimensions: 990 × 990 × 730 mm
Packing Weight: 206 kg
Machine Weight: 163 kg

Cutting System

Cutting Width: 560 mm
Cutting Height: 20–150 mm
Height Adjustment: Remote-controlled lift

Drive & Control

Travel Speed: 4 km/h
Battery: 24V / 24Ah
Control System: Remote control; integrated circuit controller
Electrical System: Self-generating system
Engine Start / Stop: Remote control start / stop
Climbing Angle: 45°

Engine & Power

Engine: RV225
Fuel Tank: 1.2 L
Fuel Consumption: 1.2 L/h
Engine Oil: 0.6 L

PRODUCT DETAILS

A Closer Look at the AY-600.

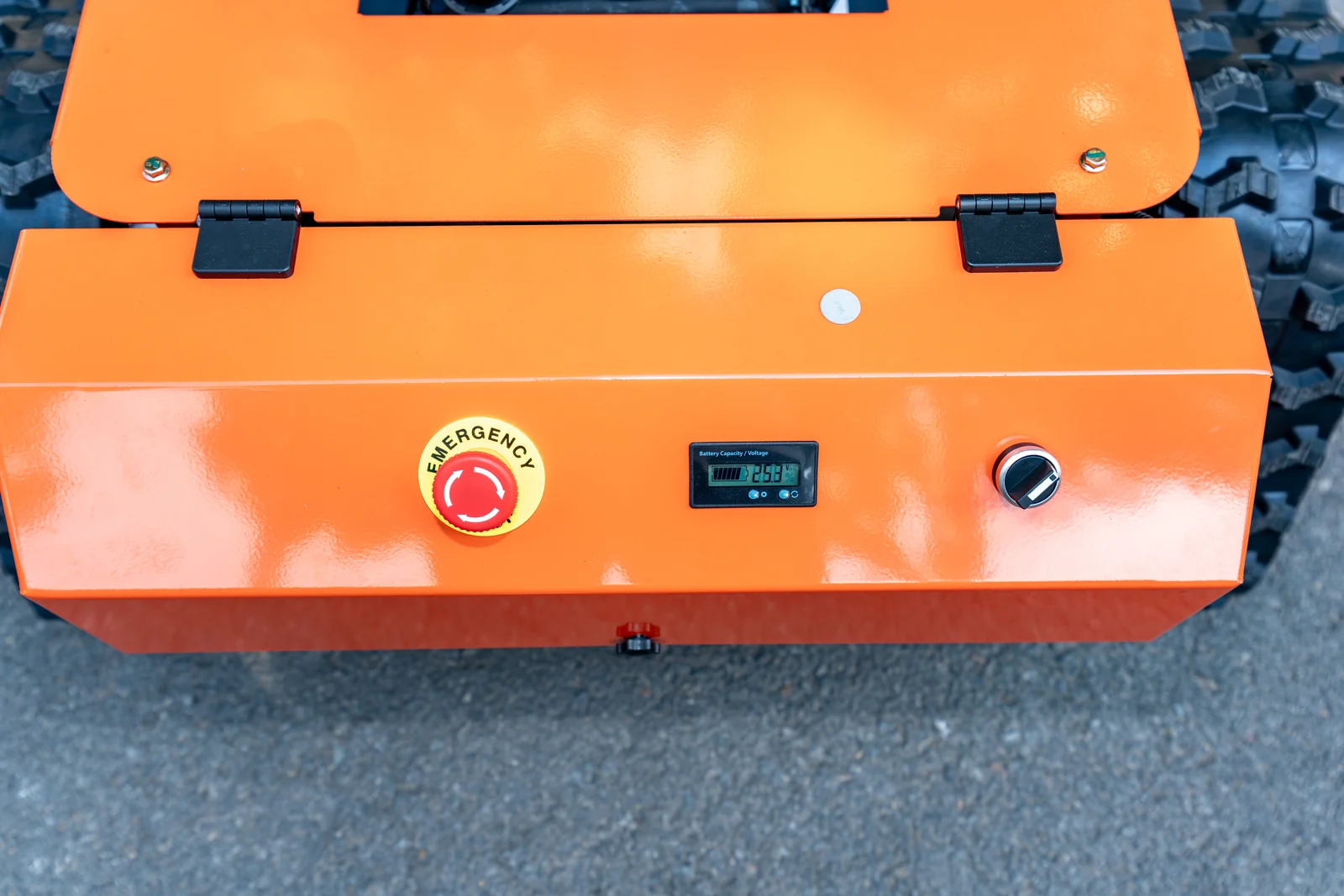

AY-600 control panel with emergency stop and battery display — Control Panel & Battery Display

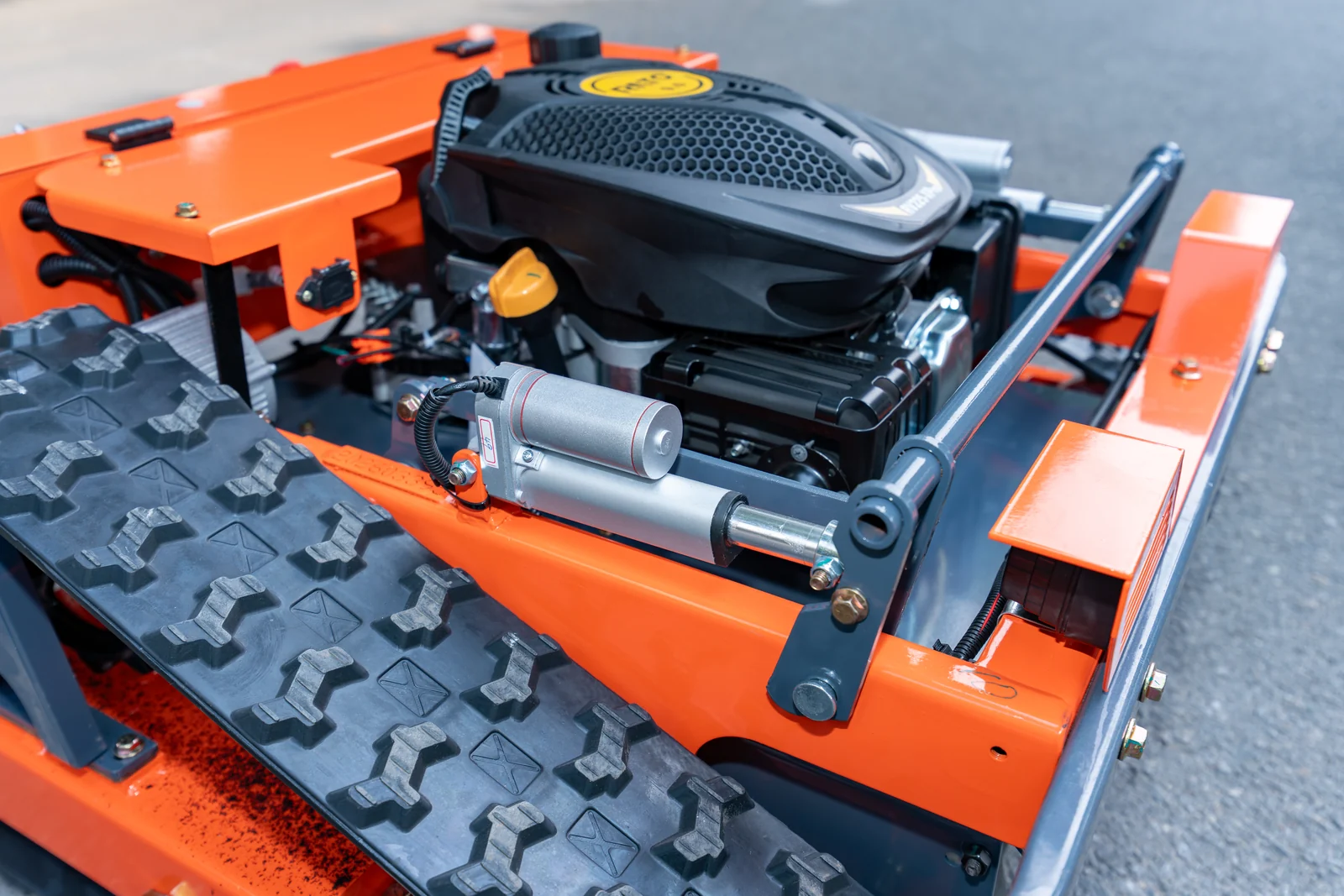

AY-600 cutting-deck lift actuator beside the track assembly — Deck Lift Actuator

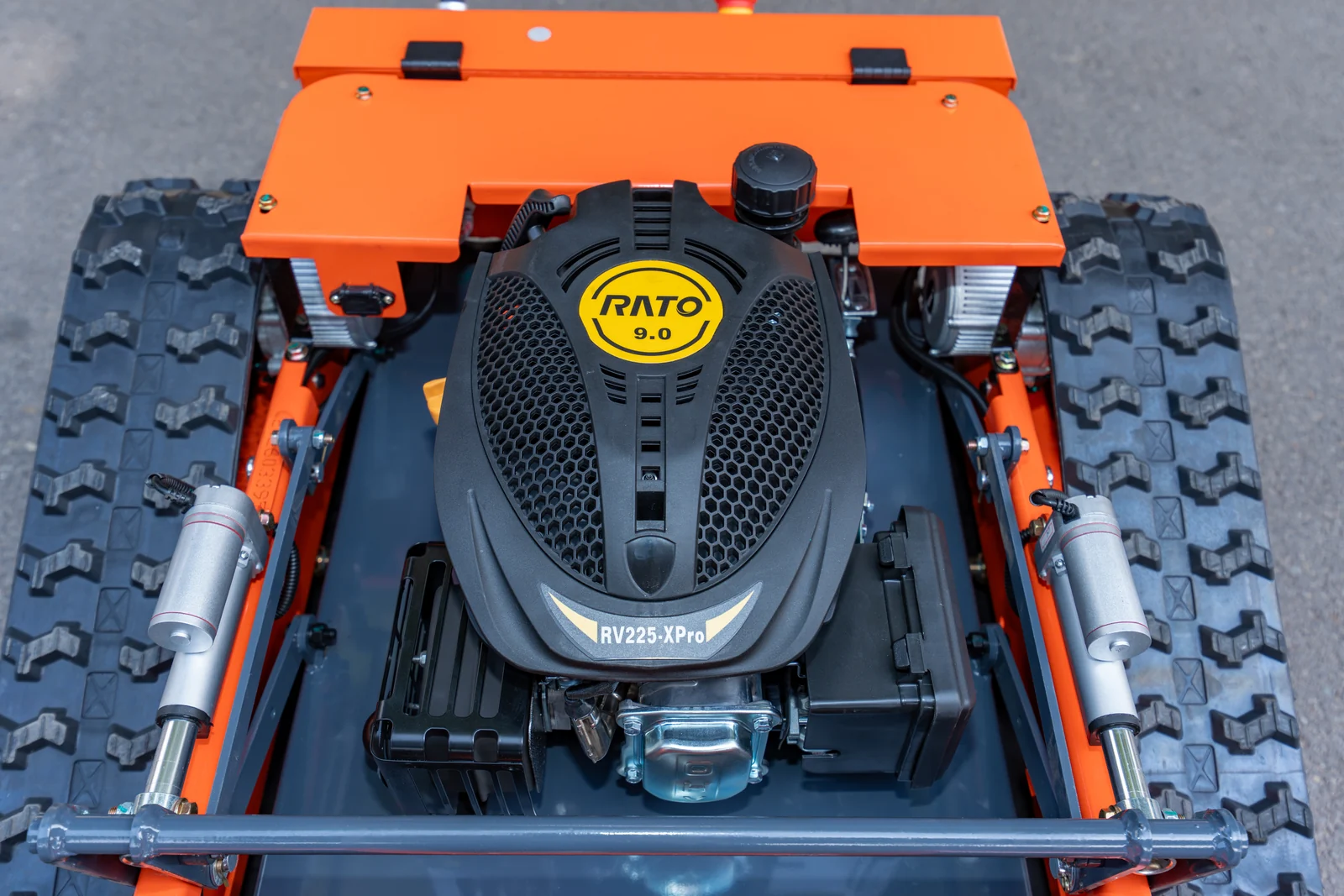

AY-600 engine compartment viewed from above — Engine Compartment

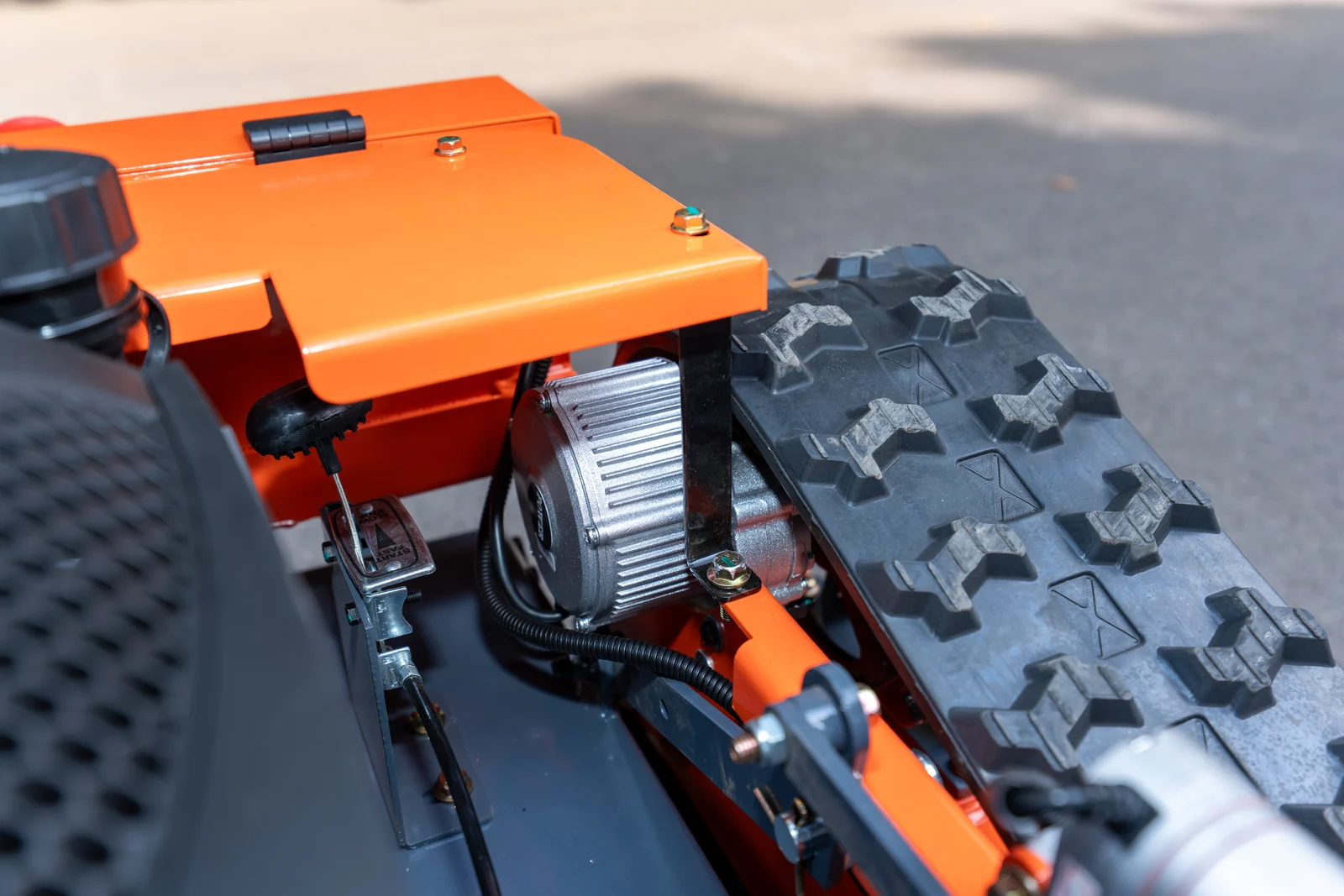

AY-600 drive motor and tracked running gear — Track Drive Motor

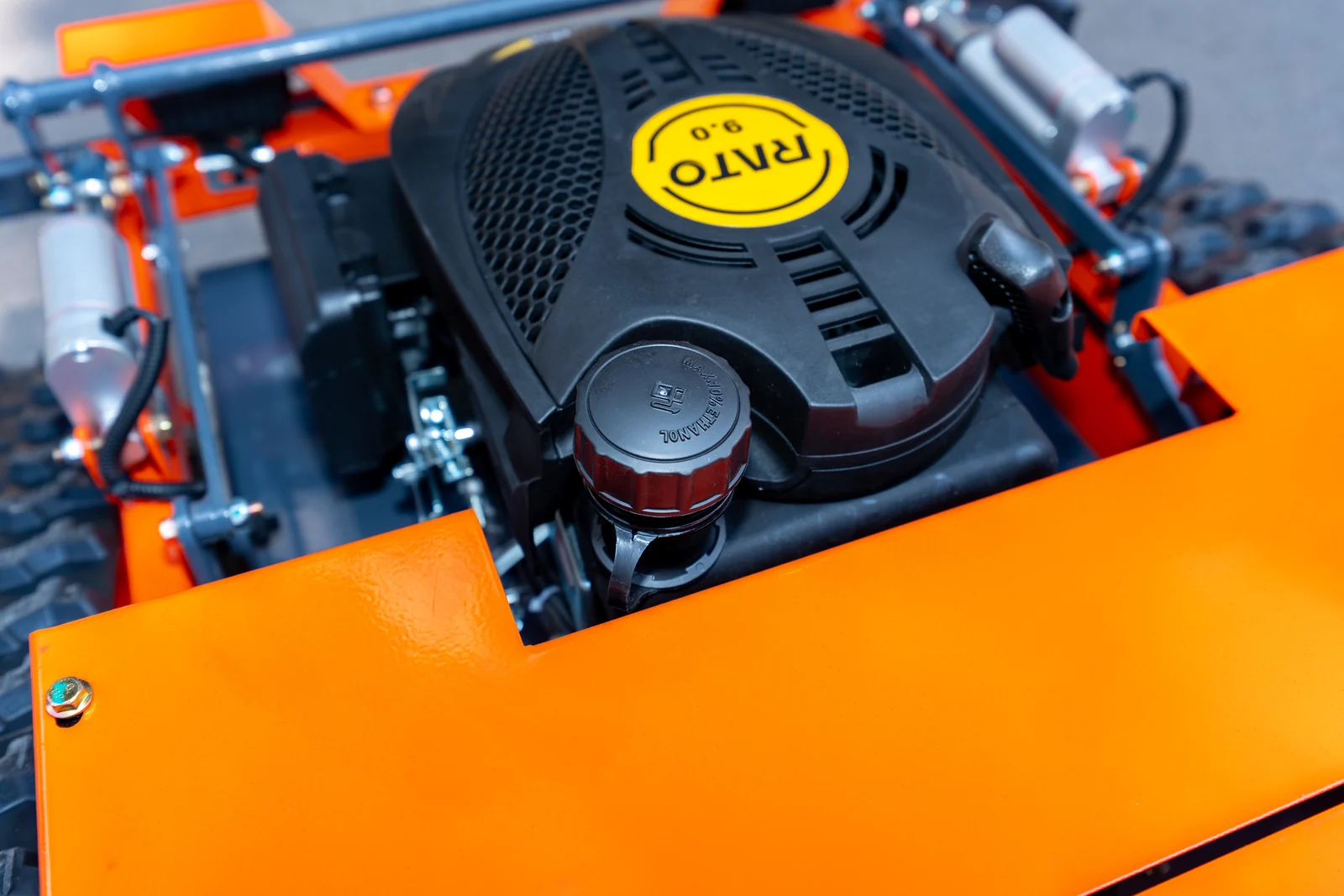

Fuel cap and engine cover on the AY-600 — Fuel Cap & Engine Cover

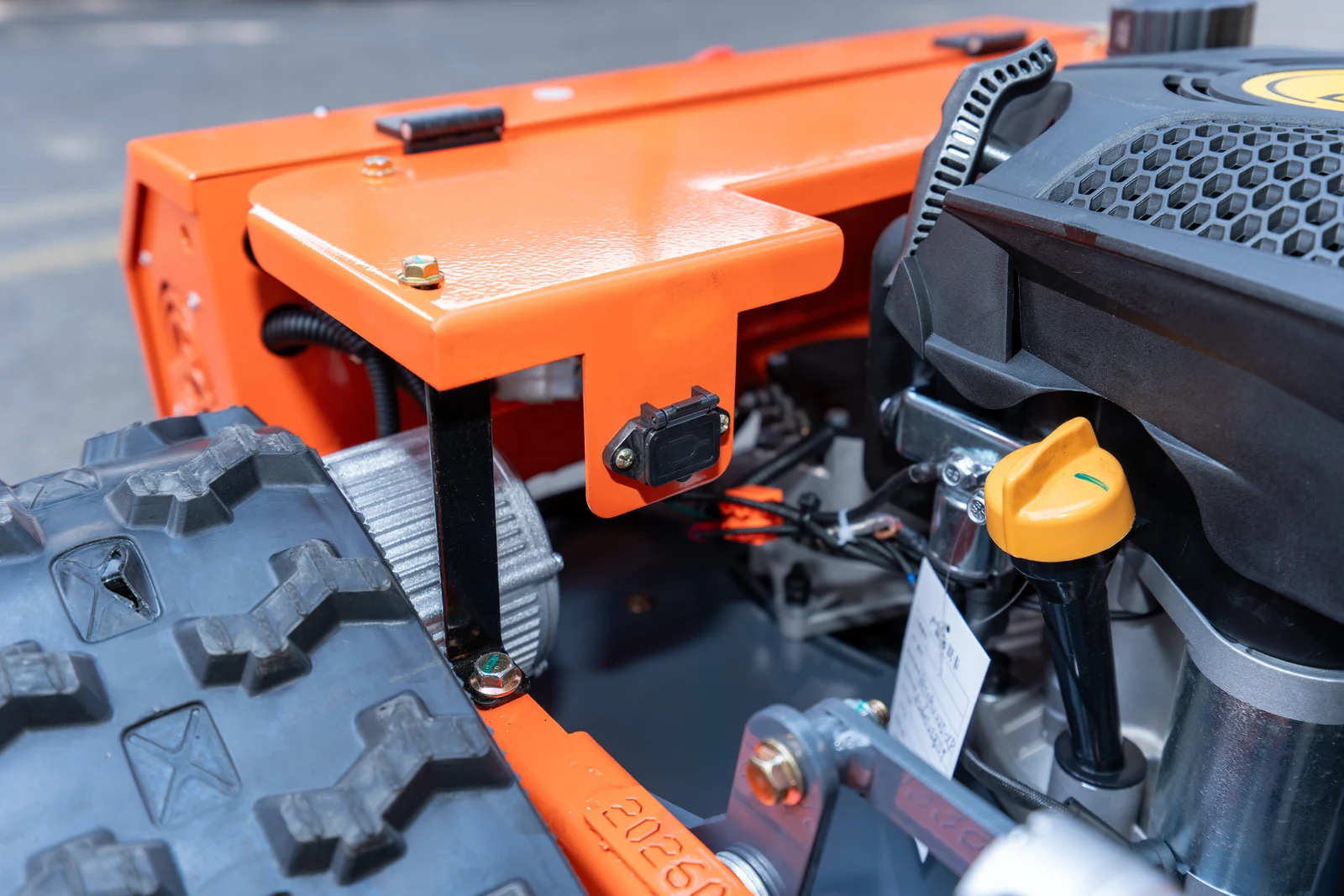

Side-mounted control switch beside the AY-600 engine — Side Control Switch

OEM / ODM

Flexible support for your market.

Talk with AVYARD about branding, configuration requirements and export preparation for the AY-600.

Discuss your requirements

01OEM Branding
02Color Options
03Configuration Support
04Export Packaging

AY-600 / FAQ

Questions about the AY-600.

Ask our team

What are the AY-600's cutting width and height range?

The local AY-600 parameter sheet lists a 560 mm cutting width and a 20–150 mm cutting-height range.

Which engine and battery are specified for the AY-600?

The model sheet lists an RV225 engine and a 24V / 24Ah battery.

Can the cutting height be adjusted remotely?

The AY-600 parameter sheet specifies remote-controlled deck lifting and a 20–150 mm cutting-height range.

Can AVYARD discuss OEM or ODM requirements for this model?

AVYARD supports OEM / ODM solutions. Share your branding and configuration requirements with the team for review.
